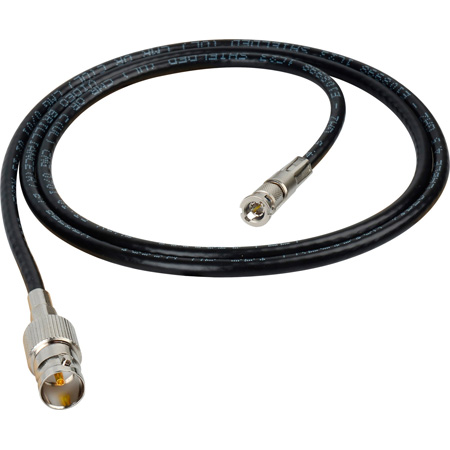

Laird High Density HD-BNC Male to Standard BNC Female HD-SDI Cables with Belden 1855A Mini-RG59

Get larger image of Laird High Density HD-BNC Male to Standard BNC Female HD-SDI Cables with Belden 1855A Mini-RG59


The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

Features:

  • Belden 1855A RG59/23 SDI Coaxial Cable
  • Amphenol Connectors



  HDBNC1855-BF01
Laird HDBNC1855-BF01 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 1 Foot
Weight: 0.087 lbs.
Price:
$38.95
  HDBNC1855-BF03
Laird HDBNC1855-BF03 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 3 Foot
Weight: 0.107 lbs.
Price:
$38.95
  HDBNC1855-BF05
Laird HDBNC1855-BF05 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 5 Foot
Weight: 0.147 lbs.
Price:
$40.95
  HDBNC1855-BF06IN
Laird HDBNC1855-BF06IN High Density HD-BNC Male to Standard BNC Female 6G HD-SDI Cable - 6 Inches
Weight: 0.067 lbs.
Price:
$38.95
  HDBNC1855-BF07
Laird HDBNC1855-BF07 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 7 Foot
Weight: 0.187 lbs.
Price:
$39.95
  HDBNC1855-BF10
Laird HDBNC1855-BF10 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 10 Foot
Weight: 0.247 lbs.
Price:
$39.95
  HDBNC1855-BF15
Laird HDBNC1855-BF15 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 15 Foot
Weight: 0.347 lbs.
Price:
$48.95
  HDBNC1855-BF25
Laird HDBNC1855-BF25 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 25 Foot
Weight: 0.547 lbs.
Price:
$56.95
  HDBNC1855-BF50
Laird HDBNC1855-BF50 Belden 1855A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 50 Foot
Weight: 1.047 lbs.
Price:
$77.95

Recommended Accessories

  HDBNC1505-MM05
Laird HDBNC1505-MM05 Belden 1505A RG59 HD-BNC Male to HD-BNC Male 6G/HD-SDI Cable - 5 Foot
Weight: 0.29 lbs.
Price:
$42.95
  HDBNC1694-MM01
Laird HDBNC1694-MM01 Belden 1694A RG6 HD-BNC Male to HD-BNC Male 6G/HD-SDI Cable - 1 Foot
Weight: 0.09 lbs.
Price:
$50.95
