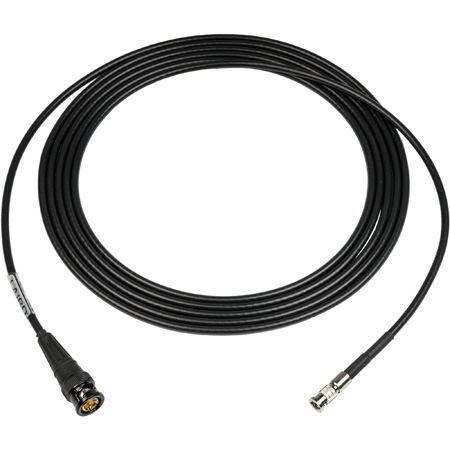

Laird HDBNC1855-B01 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 1 Foot

Get larger image of Laird HDBNC1855-B01 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 1 Foot


The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

Features:

  • Belden 1855A RG59/23 SDI Coaxial Cable Amphenol Connectors

Warranty:

  • 1 Year



  HDBNC1855-B01
Laird HDBNC1855-B01 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 1 Foot
Weight: 0.0838 lbs.
Price:
$34.95
  HDBNC1855-B02
Laird HDBNC1855-B02 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 2 Foot
Weight: 0.1038 lbs.
Price:
$35.95
  HDBNC1855-B03
Laird HDBNC1855-B03 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 3 Foot
Weight: 0.1238 lbs.
Price:
$36.49
  HDBNC1855-B05
Laird HDBNC1855-B05 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 5 Foot
Weight: 0.1638 lbs.
Price:
$37.49
  HDBNC1855-B06
Laird HDBNC1855-B06 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 6 Foot
Weight: 0.1838 lbs.
Price:
$37.95
  HDBNC1855-B1.5
Laird HDBNC1855-B1.5 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 1.5 Foot
Weight: 0.1038 lbs.
Price:
$35.95
  HDBNC1855-B10
Laird HDBNC1855-B10 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 10 Foot
Weight: 0.2638 lbs.
Price:
$39.95
  HDBNC1855-B15
Laird HDBNC1855-B15 Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 15 Foot
Weight: 0.3638 lbs.
Price:
$42.95
