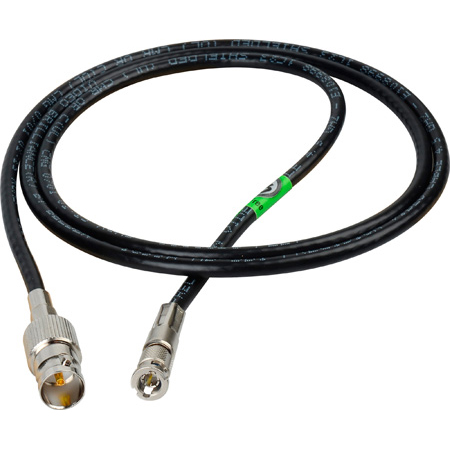

Connectronics High Density HD-BNC Male to Standard BNC Female HD-SDI Cables with Belden 1694A RG6

Get larger image of Connectronics High Density HD-BNC Male to Standard BNC Female HD-SDI Cables with Belden 1694A RG6


The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

Features:

  • Belden 1694A CM Rated RG6 Digital Coaxial Cable
  • Amphenol Connectors



  HDBNC1694-BF01
Laird HDBNC1694-BF01 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 1 Foot
Weight: 0.082 lbs.
Price:
$38.95
  HDBNC1694-BF03
Laird HDBNC1694-BF03 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 3 Foot
Weight: 0.182 lbs.
Price:
$39.95
  HDBNC1694-BF05
Laird HDBNC1694-BF05 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 5 Foot
Weight: 0.282 lbs.
Price:
$40.95
  HDBNC1694-BF07
Laird HDBNC1694-BF07 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 7 Foot
Weight: 0.382 lbs.
Price:
$42.95
  HDBNC1694-BF10
Laird HDBNC1694-BF10 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 10 Foot
Weight: 0.532 lbs.
Price:
$45.95
  HDBNC1694-BF15
Laird HDBNC1694-BF15 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 15 Foot
Weight: 0.782 lbs.
Price:
$50.95
  HDBNC1694-BF25
Laird HDBNC1694-BF25 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 25 Foot
Weight: 1.282 lbs.
Price:
$60.95
  HDBNC1694-BF50
Laird HDBNC1694-BF50 High Density HD- BNC Male to Standard BNC Female 6G HD-SDI Cable - 50 Foot
Weight: 2.532 lbs.
Price:
$84.95
