TecNec Exclusive 2 Channel HD-SDI Video and 4-Channel Audio Snake Cables

Get larger image of TecNec Exclusive 2 Channel HD-SDI Video and 4-Channel Audio Snake Cables


TecNec unveils the newest addition to its popular cable line featuring Belden Brilliance HDTV/SDI Composite Camera Cable designed for high definition video in ENG and EFP Applications.

Features:

  • Combines HD Video, Audio, Video send, Genlock Return in one handy snake
  • Features: Belden 1347A video remote cable, two video channels terminated with BNC connectors, four audio channels terminated with XLR connectors, color-coded channel identification, and ends are fanned 18 inches for easy hook-up.
  • Coax Cable is sweep tested from 5-1600 MHz and 1600-4500 MHz, achieving minimum Return Loss values of 23dB and 21dB, respectively.
  • Custom Lengths and Fanouts also available on special order!



  HDA4V2-25

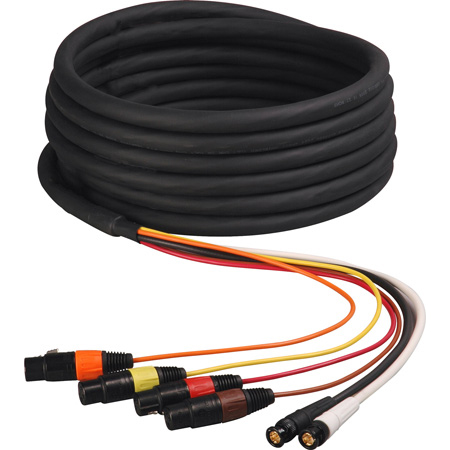

Laird HDA4V2-25 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 25 Foot
Weight: 7.15 lbs.
Price:
$249.95
  HDA4V2-50
Laird HDA4V2-50 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 50 Foot
Weight: 12.9 lbs.
Price:
$379.95
  HDA4V2-75
Laird HDA4V2-75 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 75 Foot
Weight: 18.65 lbs.
Price:
$399.95
  HDA4V2-100
Laird HDA4V2-100 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 100 Foot
Weight: 24.4 lbs.
Price:
$569.95
  HDA4V2-125
Laird HDA4V2-125 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 125 Foot
Weight: 30.15 lbs.
Price:
$689.95
  HDA4V2-150
Laird HDA4V2-150 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 150 Foot
Weight: 35.9 lbs.
Price:
$799.95
  HDA4V2-200
Laird HDA4V2-200 Belden 1347A 2-Channel HD-SDI Video and 4-Channel XLR Audio Snake Cable - 200 Foot
Weight: 47.4 lbs.
Price:
$999.95

Recommended Accessories

  RA4V2-HD250PL
Laird RA4V2-HD250PL High Definition Broadcast AV Reel w/ Connectorized Hub - 250 Foot
Weight: 93.792 lbs.
Price:
$1,799.95
