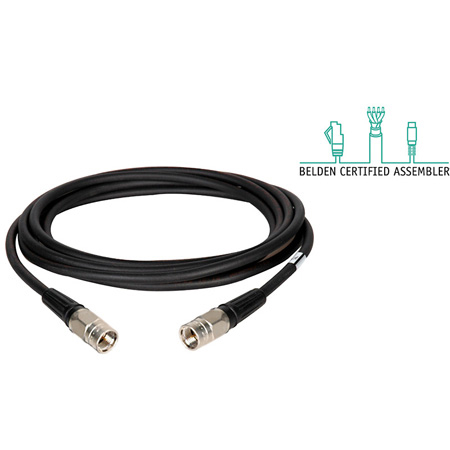

Laird F Male to F Male Belden 1505 RG59 Digital Coax Cable

Get larger image of Laird F Male to F Male Belden 1505 RG59 Digital Coax Cable


Super flexible RF coaxial cables utilizing Belden 1505F precision high definition cable. These cables are well suited for all analog, digital and HD-SDI transmission. The flexibility of the 1505F delivers a superb bend radius for installs in tight spaces because of the braided center conductor.

Features:

  • Belden 1505F Cable

  • Canare FP-C4F F Connector
  • SMPTE ST-2081 6G-SDI compliant

Specifications:

  • Belden 1505F RG59/21 SDI Coaxial Cable:
  • RG Type: 59
  • Conductor AWG: 22
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
  • Bend Radius Install. Min.: 2.4 in
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • Non-UL Temp Rating: 75°C
  • UL Temp Rating: 60°C
  • Operating Temp Range: -35°C To +75°C
  • NEC/CEC Compliance: CM

Warranty:

  • 1 Year

Download the d/Laird%20F1505F%20Series%20Datasheet


  F1505F-18IN-BK
Laird F1505F-18IN-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 18 Inch
Weight: 0.2164 lbs.
Price:
$28.49
  F1505F-3-BK
Laird F1505F-3-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 3 Foot
Weight: 0.2564 lbs.
Price:
$29.95
  F1505F-6-BK
Laird F1505F-6-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 6 Foot
Weight: 0.3764 lbs.
Price:
$34.49
  F1505F-10-BK
Laird F1505F-10-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 10 Foot
Weight: 0.5364 lbs.
Price:
$39.95
  F1505F-25-BK
Laird F1505F-25-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 25 Foot
Weight: 1.1364 lbs.
Price:
$60.49
  F1505F-50-BK
Laird F1505F-50-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 50 Foot
Weight: 2.1364 lbs.
Price:
$94.95
  F1505F-75-BK
Laird F1505F-75-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 75 Foot
Weight: 3.1364 lbs.
Price:
$129.49
  F1505F-100-BK
Laird F1505F-100-BK Belden 1505F RG59 Flexible F Male to F Male Digital Coax Cable - 100 Foot
Weight: 4.1364 lbs.
Price:
$163.95
