Product Categories>Cables>Video Cables>Video Breakout Cables

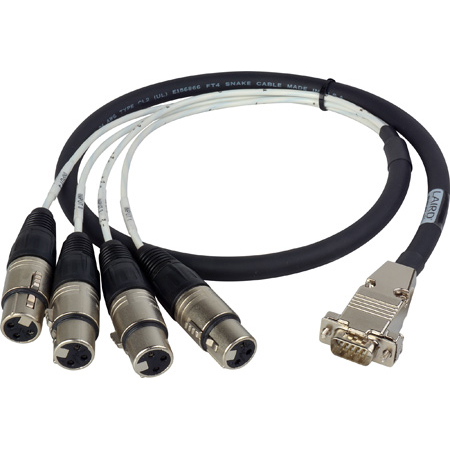

Laird Premium HD15 to XLR Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 23/25

Get larger image of Laird Premium HD15 to XLR Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 23/25


The Laird ED-BE-4XF-003 HD15 to XLR Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 23/25 is designed for superior connectivity with high quality 4-channel audio cable and XLR connectors. Cables are built with 24AWG stranded bare copper and are polypropylene insulated, individually shielded and jacketed with an overall heavy duty CL2 PVC jacket. The 12-inch fan out includes Neutrik 3-Pin XLR connectors which feature a durable zinc die cast shell, fiberglass reinforced hard plastic insert, and chuck type strain relief for secure clamping of all cables. Designed by Laird for the Bright Eye BE 23/25 models.

Features:

  • 4- Neutrik NC3FX Female 3-Pin XLR Connector 15 Pin HD Industry standard AMP DSub cable hood 3 ft audio cable with12-inch fan out High quality 24AWG audio cable

Specifications:

  • Capacitance: 25 pF/ft. @ 1 kHz Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz Characteristic Impedance: 60ohms NOMINAL D.C. Resistance @ 20°C: 24.5ohms/1000'

Warranty:

  • 1 Year

Download the ED-BE-2X Series Datasheet


  ED-BE-4XF-003
Laird Premium HD15 to XLR Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 23/25
Weight: 0.4978 lbs.
Price:
$74.49

Recommended Accessories

  ED-BE-4XM-003
Laird Premium HD15 to XLR Male Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 16/24
Weight: 0.4994 lbs.
Price:
$82.95
  ED-BE-2XMF-003
Laird Premium HD15 to XLR Male & Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 30
Weight: 0.4978 lbs.
Price:
$74.49
  ED-BE-2XM-003
Laird Premium HD15 to XLR Male Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 54
Weight: 0.342 lbs.
Price:
$59.95
