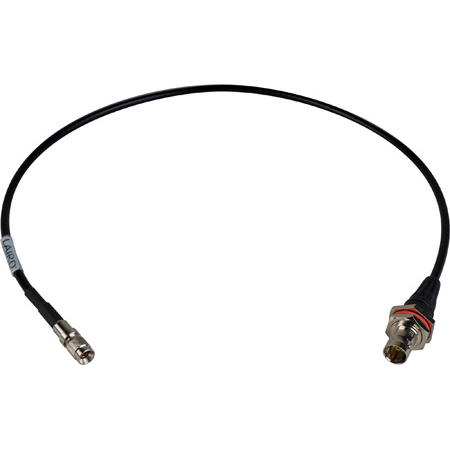

Simplify router and video extender installs with Laird's DIN-1855-CBF series. These 3G-SDI DIN 1.0/2.3 to BNC Female cables have a unique design allowing the cable to be mounted directly into a standard 1/2"-D cutout chassis at the front or back of your rack patchbay but can also be used in-line. Made with Belden 1855A cable and terminated with Amphenol and Connectronics connectors, they will be sure to offer system design flexibility and save installation time. Cables support 3G-SDI video or AES 67 audio and are commonly used in Imagine X50 and similar applications.
Features:
- Chassis Mount BNC Connectors for Quick Connect and Disconnect to DIN 1.0/2.3 Connector
- Supports AES 67 Audio and 3G-SDI Video Formats
Specifications:
- Amphenol RF BNC Straight Crimp Jack to DIN 1.0/2.3 Connector
- Impedance 75 ohm
- Frequency Max 4GHz
- Mating Cycles 500
- Belden 1855A Cable
- RG Type: Sub-miniature 59/U
- AWG: 23
- Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Nom. Characteristic Impedance: 75 Ohm +/- 1.50
