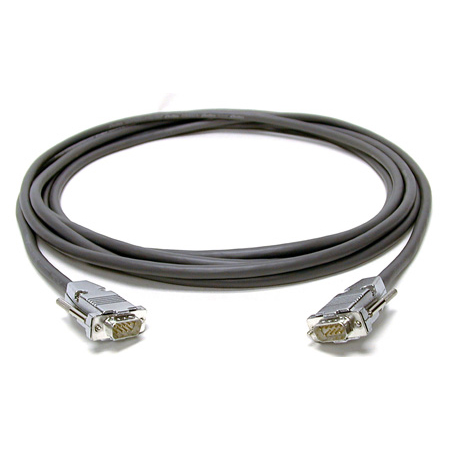

Laird Sony RCC-G 9-Pin Male To 9-Pin Male RS-232 / RS-422 Control Cables

Get larger image of Laird Sony RCC-G 9-Pin Male To 9-Pin Male RS-232 / RS-422 Control Cables


RS-422 Serial Cables Equivalent to Sony RCC-G (JVC VC-452U & Panasonic AU-C)

Features:

  • Indoor Rated (Not Riser or Plenum)
  • Semi-Rigid Insulation
  • Pin out according to Sony's standards

Specifications:

    Belden 9538
  • Number of Elements: 8
  • Conductor AWG: 24 AWG
  • Conductor Stranding: 7x32
  • Conductor Material: Tinned Copper
  • Insulation Material: Polyvinyl Chloride (Semi-Rigid)
  • Insulation Thickness: 0.011" (0.28mm)
  • Insulation Diameter: 0.044" (1.1mm)
  • Outer Shield Type: Tape
  • Outer Shield Material/Coverage: Bi-Laminate (Alum+Poly)/100%
  • Drainwire Type: 24 AWG (7x32) Tinned Copper
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Thickness: 0.032" (0.81mm)
  • Outer Jacket Diameter: 0.224" (5.69mm)
  • Overall Cable Diameter: 0.224" (5.69mm)
  • Nom. Conductor DCR: 25Ω/1000ft
  • Nom. Capacitance Cond-to-Cond: 33pF/ft (110pF/m)
  • Nom. Capacitance Cond-to-Other (Conds+Shield): 65pF/ft (210pF/m)
  • Voltage: 300V
  • Temperature: -22°F - 176°F (-30°C - 80°C)
  • Bend Radius:
    • Stationary: 2.7" (69mm)
    • Installation: 2.7" (69mm)
  • Max Pull Tension: 50lbs (23kg)

    9-Pin Male D-Sub
  • Material: Die-Cast Zinc Alloy
  • Plating: Nickel

Warranty:

  • 1 Year



  D9M-M-3
Laird Belden 9538 Sony RCC-G Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable 3 Foot
Weight: 0.3774 lbs.
Price:
$46.49
  D9M-M-7
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 7 Foot
Weight: 0.4974 lbs.
Price:
$57.95
  D9M-M-10
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 10 Foot
Weight: 0.5874 lbs.
Price:
$66.95
  D9M-M-25
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 25 Foot
Weight: 1.0374 lbs.
Price:
$110.95
  D9M-M-50
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 50 Foot
Weight: 1.7874 lbs.
Price:
$183.95
  D9M-M-82
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 82 Foot
Weight: 2.7474 lbs.
Price:
$277.49
  D9M-M-100
Laird Belden 9538 Sony RCC-G-Equivalent 9-Pin D-Sub Male to Male RS-422 Control Cable - 100 Foot
Weight: 3.2874 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$329.95

Recommended Accessories

  D9M-F-6
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 6 Foot
Weight: 0.6874 lbs.
Price:
$58.95
