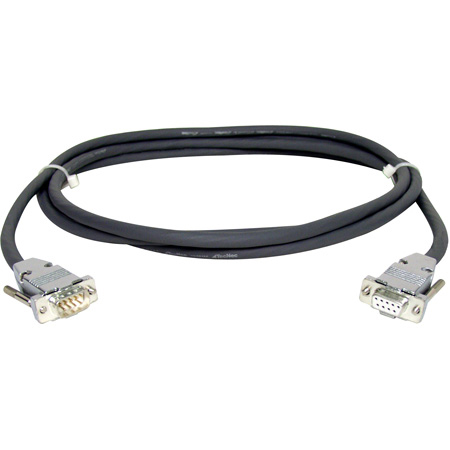

Laird Sony Type 9-Pin Male To 9-Pin Female RS-422 Control Cables

Get larger image of Laird Sony Type 9-Pin Male To 9-Pin Female RS-422 Control Cables


RS-422 Serial Cables Equivalent to Sony RCC-G (JVC VC-G9050 & Panasonic AU-C)

Features:

  • Indoor Rated (Not Riser or Plenum)
  • Semi-Rigid Insulation
  • Pin out according to Sony's standards

Specifications:

    Belden 9538
  • Number of Elements: 8
  • Conductor AWG: 24 AWG
  • Conductor Stranding: 7x32
  • Conductor Material: Tinned Copper
  • Insulation Material: Polyvinyl Chloride (Semi-Rigid)
  • Insulation Thickness: 0.011" (0.28mm)
  • Insulation Diameter: 0.044" (1.1mm)
  • Outer Shield Type: Tape
  • Outer Shield Material/Coverage: Bi-Laminate (Alum+Poly)/100%
  • Drainwire Type: 24 AWG (7x32) Tinned Copper
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Thickness: 0.032" (0.81mm)
  • Outer Jacket Diameter: 0.224" (5.69mm)
  • Overall Cable Diameter: 0.224" (5.69mm)
  • Nom. Conductor DCR: 25Ω/1000ft
  • Nom. Capacitance Cond-to-Cond: 33pF/ft (110pF/m)
  • Nom. Capacitance Cond-to-Other (Conds+Shield): 65pF/ft (210pF/m)
  • Voltage: 300V
  • Temperature: -22°F - 176°F (-30°C - 80°C)
  • Bend Radius:
    • Stationary: 2.7" (69mm)
    • Installation: 2.7" (69mm)
  • Max Pull Tension: 50lbs (23kg)

    9-Pin Male D-Sub
  • Material: Die-Cast Zinc Alloy
  • Plating: Nickel

Warranty:

  • 1 Year



  D9M-F-6
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 6 Foot
Weight: 0.6874 lbs.
Price:
$58.95
  D9M-F-10
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 10 Foot
Weight: 0.8074 lbs.
Price:
$70.49
  D9M-F-17
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 17 Foot
Weight: 1.0174 lbs.
Price:
$90.95
  D9M-F-25
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 25 Foot
Weight: 1.2574 lbs.
Price:
$114.49
  D9M-F-50
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 50 Foot
Weight: 2.0074 lbs.
Price:
$187.49
  D9M-F-75
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 75 Foot
Weight: 2.7574 lbs.
Price:
$260.49
  D9M-F-100
Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 100 Foot
Weight: 3.5074 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$333.95
