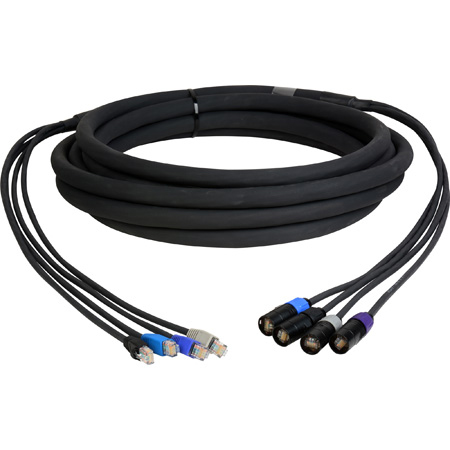

The Laird CES-RJ45EC8 series was developed for any application requiring heavy-duty CAT5e Ethernet cable deployment and features Belden 1304A4 bonded-pair cable, with an RJ45 Snagless Round Boot on one end to protect its locking tab, and a professional Neutrik NE8MX EtherCON connector on the other.
RJ45 connectors are commonly used in the stage world, creating the need for a road-worthy Ethernet cable. Neutrik's EtherCON has a rugged diecast shell and unique chuck type strain relief which protects Ethernet connections in a variety of broadcast & commercial applications, and is designed to prevent fragile component breakage common to standard RJ45 connectors.
The CES-RJ45EC8 series Ethernet cables are Ideal for use with video and audio CAT5e extenders on set, in the field or anywhere a heavy-duty CAT5e to Neutrik EtherCON cable is needed.
Laird Tech Note: Compliant with all PoE Specs, when installed according to TIA guidelines.
Features:
- Built for demanding applications with Belden 1304A4 bonded pair cable
- Features RJ45 Snagless Round Boot and Neutrik NE8MX EtherCON connector for secure, lasting connections
- Road-worthy solution for stage environments, compatible with standard hardware
- Rugged construction with Neutrik's etherCON cable connector, offering a robust lockable diecast shell and strain relief to prevent breakage
- Ideal for video and audio CAT5e extenders on set or in the field, ensuring reliable performance
Specifications:
Belden 1304A4 Cat5e CatSnake- Conductor Size: 24 AWG
- Conductor Stranding: 7x32
- Conductor Material: Bare Copper - BC
- Number of Pairs: 16
- Insulation Material: Polypropylene - PP
- Insulation Nom. Diameter: 0.043" (1.1mm)
- Bonded-Pair: Yes
- Inner Jacket Material: Polyvinyl Chloride - PVC
- Inner Jacket Nom. Diameter: 0.25" (6.4mm)
- Outer Jacket Material: Polyvinyl Chloride - PVC
- Outer Jacket Nom. Diameter: 0.757" (19.2mm)
- Overall Cable Nom. Diameter: 0.757" (19.2mm)
- Max. Conductor DCR: 90 Ohm/km (27 Ohm/1000ft)
- Max. Capacitance Unbalance: 66
- Max. Delay: 510 ns/100m
- Max. Delay Skew: 25 ns/100m
- Nom. Velocity of Prop: 70%
- Typical Delay Skew: 15 ns/ft
- Voltage Rating: 300 V
- Operating Temperature: -22°F - 167°F (-30°C - 75°C)
- Bend Radius:
- Stationary Min: 7.6" (190mm)
- Installation Min: 7.6" (190mm) - Max. Pull Tension: 176 lbs (79.8 kg)
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Neutrik etherCON - Insertion Force: ≤20 N
- Withdrawal Force: ≤20 N
- Lifetime: > 1000 mating cycles
RJ45 Connectors - Pin Material: 50 µin gold
