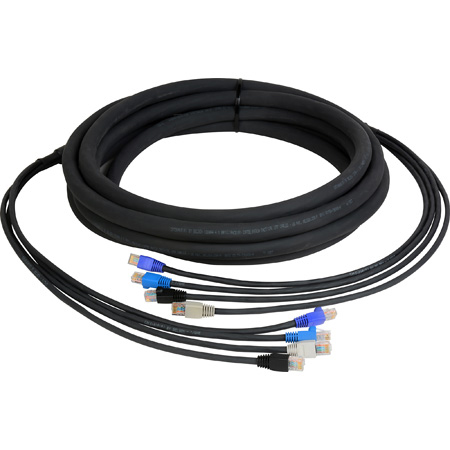

The Laird CES-RJ45 4-Channel CAT5e Tactical Ethernet Snake compliments applications with balun systems that require multiple or redundant channels of Cat5e cables in remote production or staging applications. These can be used with balun products or as Datacom products. Perfect for all professional audio applications. Designed with heavy duty, tour-grade flexible jacket. This series features RJ45 CAT5e connections in a 24 inch fanout at each end. Each RJ45 connector is individually color coated for easy identificaiton. Snake cable consists of heavy duty, four-pair Cat5e UTP cables under a black overall jacket. Each element features 24 gage, solid copper conductors and a unique inner belt that preserves the critical pair spacing and geometry. For added strength and diameter, each four-pair UTP element has a second TPE jacket which is color coded for easy identification. The outer jacket is also constructed from a rugged TPE compound for exceptional durability and flexibility in hostile environments.

Laird Tech Note: Compliant with all PoE Specs, when installed according to TIA guidelines.

Applications:
Field Deployable Cat5e Patch
CobraNet
eSnake
Ethersound
Digital Audio over Ethernet

Features:

• Heavy-duty, tour-grade flexible jacket
• 24" fanout at each end
• Color-coded for easy identification
• High-quality modular plugs for use with industry-standard crimp tools
• Phosphor bronze with selective gold plating in the contact area

Specifications:

Belden 1304A4 Cat5e CatSnake
• Conductor Size: 24 AWG
• Conductor Stranding: 7x32
• Conductor Material: Bare Copper - BC
• Number of Pairs: 16
• Insulation Material: Polypropylene - PP
• Insulation Nom. Diameter: 0.043" (1.1mm)
• Bonded Pair: Yes
• Inner Jacket Material: Polyvinyl Chloride - PVC
• Inner Jacket Nom. Diameter: 0.25" (6.4mm)
• Outer Jacket Material: Polyvinyl Chloride - PVC
• Outer Jacket Nom. Diameter: 0.757" (19.2mm)
• Overall Nom. Cable Diameter: 0.757" (19.2mm)
• Max. Conductor DCR: 90 Ohm/km (27 Ohm/1000ft)
• Max. Capacitance Unbalance: 66
• Max. Delay: 510 ns/100m
• Max. Delay Skew: 25 ns/100m
• Nom. Velocity of Prop %: 70
• Typical Delay Skew: 15 ns/ft
• Voltage Rating: 300 V
• Max. Pull Tension: 176lbs (79.8 kg)
• Bend Radius:
  - Stationary: 7.6" (190mm)
  - Installation: 7.6" (190mm)
• Operating Temperature: -22°F - 167°F (-30°C - 75°C)
• IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

  Eclipse RJ45
• Pin Material: 50 µin gold

Warranty:

• Limited Lifetime
