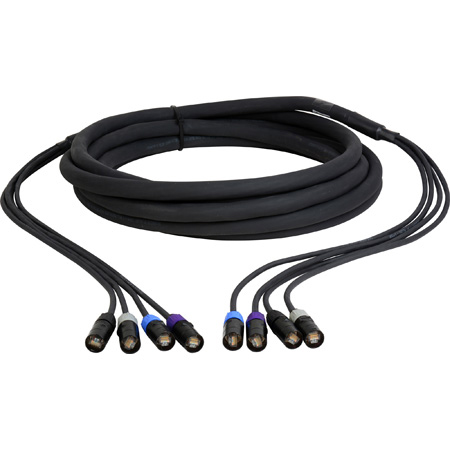

Laird CES-EC8-6 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 6 Foot

Get larger image of Laird CES-EC8-6 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 6 Foot


To compliment applications with balun systems, our shop has crafted a series of CAT5E Tactical Ethernet Snakes. These can be used with balun products or as Datacom products. Perfect for all professional audio applications. Designed with heavy duty, tour-grade flexible jacket. This series features the RJ45 connection protected in the Neutrik Ethercon NE8MC-B Black shell. EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier comes along in a robust diecast shell and the unique Neutrik chuck-type strain relief for optimal cable and plug protection.

Features:

  • Complements balun systems, ideal for professional audio applications
  • Suitable for use with balun products or as Datacom products
  • Heavy-duty, tour-grade flexible jacket for durability
  • RJ45 connection protected in Neutrik Ethercon NE8MC-B Black shell for secure connections
  • Neutrik chuck-type strain relief ensures optimal cable and plug protection
  • Designed for audio and stage applications, including DMX systems
  • Robust die-cast shell for durability in various environments
  • Reliable data transmission and signal integrity for professional audio setups

Specifications:

  • Belden 1304A4 24 AWG CatSnake Cable
  • Bend Radius: 7.6 in (190 mm)
  • Max. Pull Tension: 176 lbs (79.8 kg)
  • Conductor Size: 24 AWG
  • Conductor Stranding: 7x32
  • Conductor Material BC - Bare Copper
  • Insulation Material: Polypropylene
  • Inner & Outer Jacket: PVC
  • Overall Cable Diameter: 0.757 in (19.2 mm)
  • Max. Conductor DCR: 90 Ohm/km (27 Ohm/1000ft)
  • Voltage Rating: 300 V
  • Operating Temperature: -30°C to 75°C

Warranty:

  • 1 Year

Download the CES-EC8 Series Datasheet


  CES-EC8-10
Laird CES-EC8-10 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 10 Foot
Weight: 2.7972 lbs.
Price:
$143.95
  CES-EC8-100
Laird CES-EC8-100 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 100 Foot
Weight: 26.8272 lbs.
Price:
$625.95
  CES-EC8-15
Laird CES-EC8-15 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 15 Foot
Weight: 4.1322 lbs.
Price:
$171.95
  CES-EC8-150
Laird CES-EC8-150 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 150 Foot
Weight: 40.1772 lbs.
Price:
$896.95
  CES-EC8-175
Laird CES-EC8-175 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 175 Foot
Weight: 46.8522 lbs.
Price:
$1,012.95
  CES-EC8-200
Laird CES-EC8-200 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 200 Foot
Weight: 53.5272 lbs.
Price:
$1,145.95
  CES-EC8-25
Laird CES-EC8-25 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 25 Foot
Weight: 6.8022 lbs.
Price:
$228.49
  CES-EC8-250
Laird CES-EC8-250 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 250 Foot
Weight: 66.8772 lbs.
Price:
$1,385.95
  CES-EC8-300
Laird CES-EC8-300 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 300 Foot
Weight: 80.2272 lbs.
Price:
$1,646.95
  CES-EC8-328
Laird CES-EC8-328 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 328 Foot
Weight: 87.7032 lbs.
Price:
$1,792.95
  CES-EC8-35
Laird CES-EC8-35 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 35 Foot
Weight: 9.4722 lbs.
Price:
$278.95
  CES-EC8-50
Laird CES-EC8-50 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 50 Foot
Weight: 13.4772 lbs.
Price:
$361.95
  CES-EC8-500
Laird CES-EC8-500 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 500 Foot
Weight: 133.6272 lbs.
Price:
$2,641.49
  CES-EC8-6
Laird CES-EC8-6 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 6 Foot
Weight: 1.7292 lbs.
Price:
$120.95
  CES-EC8-75
Laird CES-EC8-75 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 75 Foot
Weight: 20.1522 lbs.
Price:
$499.95
