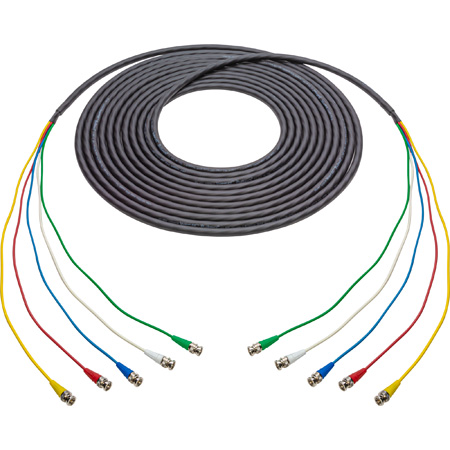

Laird RG59 12G-SDI/4K UHD 5- Channel BNC Male to BNC Male Snake Cable - Black

Get larger image of Laird RG59 12G-SDI/4K UHD 5- Channel BNC Male to BNC Male Snake Cable - Black


Laird 5-Channel 4855R 12G-SDI/4K UHD BNC snake cables are the next-gen Mini-RG59 BNC cable designed to handle 12GHz 4K UHD signals with a clean signal delivery up to 117 feet (3G-SDI up to 300 feet). These BNC Male to BNC Male cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855R Series is the 12G-SDI equivalent of Belden's famous 1855A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Space Saving 5 Channels in One Snake
  • Easy Handling & Portability
  • Each Channel Rated 12G-SDI
  • Flexible Cable Suitable for Studio or Field Applications
  • Color-Coded Strain Relief Boots for Fast Identification
  • Quick Connect/Disconnect with BNC Connectors
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

Specifications:

  • Belden 12G SDI Mini-RG59 5-Channel Coax Cable with PVC Jacket
  • Belden Certified Max Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
  • Laird Certified Max Transmission Distance: 117 Feet for 12G/4K
  • 12G SDI Optimized Amphenol BNC Connectors Compatible with 12GSDI single link format devices
  • Nominal Impedance: 75Ω
  • Conductor: Silver Plated Copper
  • Insulation: Gas Injected Foam HDPE
  • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
  • Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
  • Nominal Inductance: .107 ΜH/ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft

    ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the 4855RX5-BB Series Datasheet


  4855RX5-BB-003
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 3 Foot
Weight: 0.6774 lbs.
Price:
$138.49
  4855RX5-BB-006
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 6 Foot
Weight: 1.0824 lbs.
Price:
$175.95
  4855RX5-BB-010
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 10 Foot
Weight: 1.6224 lbs.
Price:
$226.49
  4855RX5-BB-015
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 15 Foot
Weight: 2.2974 lbs.
Price:
$289.95
  4855RX5-BB-025
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 25 Foot
Weight: 3.6474 lbs.
Price:
$415.95
  4855RX5-BB-050
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 50 Foot
Weight: 7.0224 lbs.
Price:
$731.49
  4855RX5-BB-075
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 75 Foot
Weight: 10.3974 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,046.95
  4855RX5-BB-100
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 100 Foot
Weight: 13.7724 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,362.49
  4855RX5-BB-125
Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 125 Foot
Weight: 17.1474 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,677.95
