Product Categories>Cables>Video Cables>12G Video Snake Cables

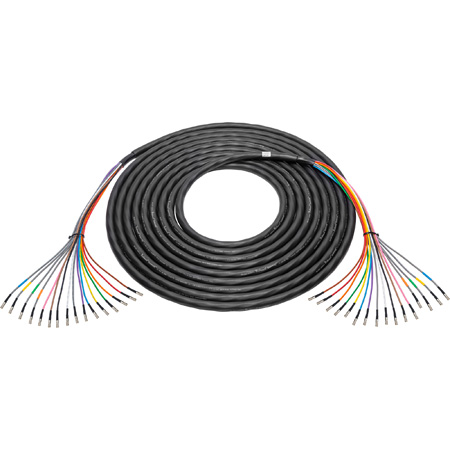

Laird 4855R16-DIN-003 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 3 Foot

Get larger image of Laird 4855R16-DIN-003 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 3 Foot


The 4855R16-DIN Series 16-Channel 12G-SDI DIN1.0/2.3 to 12G-SDI DIN1.0/2.3 cables by Laird feature Belden's popular 4855R16 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight.

Features:

  • Space Saving 16 Channels in One Snake
  • Easy Handling & Portability
  • Each Channel Rated for 12G-SDI
  • Quick/Disconnect with BNC Connectors
  • Push-Pull Coupling DIN 1.0/2.3 Connector
  • Flexible Cable Suitable for Studio or Field Applications
  • Strain Relief Boots for Fast Identification
  • Meet 2082-1, 2081-1, and 424M Standards

Specifications:

  • 23 AWG Mini Coax CMR Cable with PVC Jacket
  • DIN 1.0/2.3 RF Connector 75 Ohm
  • Silver-Plated Copper Stranding
  • Tinned Copper Braid
  • Gas-Injected FHDPE Insulation
  • Impedance 75Ω
  • Capacitance: 16.3 pF/ft
  • Nominal Inductance: 0.107 ΜH/ft
  • Overall Min Bend Radius: 9.2 in / Each Coax Min Bend Radius: 1.6 in

Warranty:

  • 1 Year



  4855R16-DIN-003
Laird 4855R16-DIN-003 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 3 Foot
Weight: 3.1134 lbs.
Price:
$283.95
  4855R16-DIN-006
Laird 4855R16-DIN-006 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 6 Foot
Weight: 4.3044 lbs.
Price:
$357.95
  4855R16-DIN-010
Laird 4855R16-DIN-010 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 10 Foot
Weight: 5.8924 lbs.
Price:
$447.95
  4855R16-DIN-015
Laird 4855R16-DIN-015 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 15 Foot
Weight: 7.8774 lbs.
Price:
$569.49
  4855R16-DIN-025
Laird 4855R16-DIN-025 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 25 Foot
Weight: 11.8474 lbs.
Price:
$795.49
  4855R16-DIN-050
Laird 4855R16-DIN-050 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 50 Foot
Weight: 21.7724 lbs.
Price:
$1,390.95
  4855R16-DIN-075
Laird 4855R16-DIN-075 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 75 Foot
Weight: 31.6974 lbs.
Price:
$1,944.95
  4855R16-DIN-100
Laird 4855R16-DIN-100 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 100 Foot
Weight: 41.6224 lbs.
Price:
$2,527.49
  4855R16-DIN-125
Laird 4855R16-DIN-125 16-Channel 12G-SDI/4K UHD DIN 1.0/2.3 Male to DIN 1.0/2.3 Male Snake Cable - 125 Foot
Weight: 51.5474 lbs.
Price:
$3,046.95
