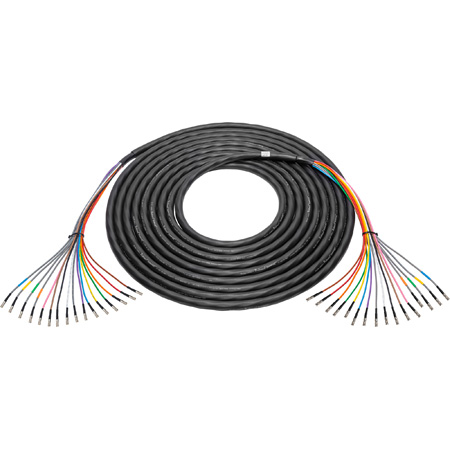

Laird 16-Channel 4855R 12G-SDI/4K UHD BNC snake cables are the next-gen Mini-RG59 BNC cable designed to handle 12GHz 4K UHD signals with a clean signal delivery up to 117 feet (3G-SDI up to 300 feet). These DIN 1.0/2.3 Male to HD-BNC Female cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition coaxial cable for 12G-SDI, these cables are the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855R Series is the 12G-SDI equivalent of Belden's famous 1855A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

• Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
• Space Saving 16 Channels in One Snake
• Easy Handling & Portability
• Each Channel Rated for 12G-SDI
• Flexible Cable Suitable for Studio or Field Applications
• Strain Relief Boots for Fast Identification
• Quick/Disconnect with BNC & DIN 1.0/2.3 Connectors
• Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
• Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

Specifications:

• Belden 12G SDI Mini-RG59 16-Channel Coax Cable with PVC Jacket
• Belden Certified Max Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
• Laird Certified Max Transmission Distance: 117 Feet for 12G/4K
• 12G SDI Optimized DIN 1.0/2.3 & Amphenol HD-BNC Connectors Compatible with 12GSDI single link format devices
• Nominal Impedance: 75Ω
• Conductor: Silver Plated Copper
• Insulation: Gas Injected Foam HDPE
• Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
• Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
• Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
• Nominal Inductance: .107 ΜH/ft
• Nominal Capacitance Conductor to Shield: 16.3 pF/ft

  ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

• 1 Year
