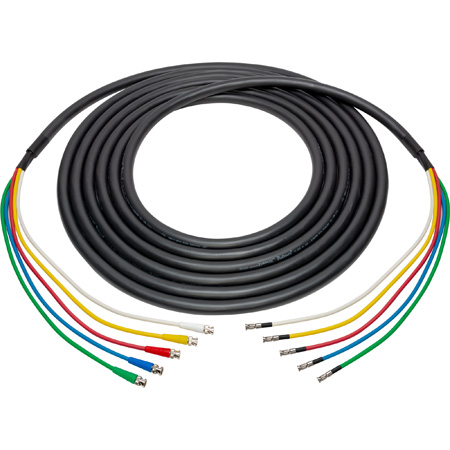

Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black

Get larger image of Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black


Laird 4694R 12G-SDI/4K UHD 5-Channel BNC to HDBNC snake cables are the next-gen RG6 BNC cable designed to handle 12GHz 4K UHD signals with a clean signal delivery over 190 feet (3G-SDI up to 540 feet). These cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4694R 4K Ultra-High-Definition RG6 coaxial cable for 12G-SDI, these cables are the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4694R Series is the 12G-SDI equivalent to Belden's famous 1694A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 190 Feet for 12G-SDI even though Belden may show this distance as 257 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • High Quality Amphenol RF BNC and HDBNC Connectors
  • Space Saving 5 Channels in One Snake
  • Easy Handling & Portability
  • Each Channel Rated 12G-SDI
  • Flexible Cable Suitable for Studio or Field Applications
  • Color-Coded Strain Relief Boots for Fast Identification
  • Quick Connect/Disconnect with Bayonet Coupling
  • Meets 2082-1, 2081-1, and 424M Standards

Specifications:

  • Belden Certified Max Transmission Distance: 257 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 190 Feet for 12G/4K
  • 18 AWG Coax CMR Cable with PVC Jacket
  • Silver-Plated Copper Stranding
  • Tinned Copper Braid
  • Gas Injected FHDPE Insulation
  • Impedance 75Ω
  • Capacitance: 15.9 pF/ft
  • Nominal Inductance: 0.106 ΜH/ft
  • Overall Min Bend Radius: 9.7 in / Each Coax Min Bend Radius: 2.75 in
  • Nickel Plated BNC and HDBNC Connectors
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the 4694RX5-BMB Series Datasheet


  4694RX5-BMB-003
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 3 Foot
Weight: 1.3837 lbs.
Price:
$204.95
  4694RX5-BMB-006
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 6 Foot
Weight: 2.4817 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$247.49
  4694RX5-BMB-010
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 10 Foot
Weight: 3.9457 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$303.49
  4694RX5-BMB-015
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 15 Foot
Weight: 5.7757 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$373.95
  4694RX5-BMB-025
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 25 Foot
Weight: 9.4357 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$514.95
  4694RX5-BMB-050
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 50 Foot
Weight: 18.5857 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$867.49
  4694RX5-BMB-075
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 75 Foot
Weight: 27.7357 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,219.49
  4694RX5-BMB-100
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 100 Foot
Weight: 36.8857 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,571.95
  4694RX5-BMB-125
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 125 Foot
Weight: 46.0357 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,923.95
  4694RX5-BMB-150
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 150 Foot
Weight: 55.1857 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$2,276.49
  4694RX5-BMB-200
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 200 Foot
Weight: 73.4857 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$2,980.95
  4694RX5-BMB-250
Laird RG6 12G-SDI/4K UHD 5 Channel BNC Male to HDBNC Male Snake - Black - 250 Foot
Weight: 91.7857 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$3,693.95
