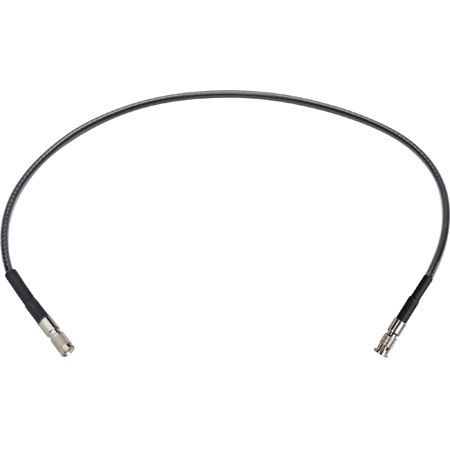

Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable

Get larger image of Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable


The 12GDIN4855MB Series 12G-SDI DIN1.0/2.3 to 12G-SDI HD-BNC video adapter cables by Laird feature Belden's popular 4855R 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight. This cable is perfect for adapting 12G-SDI DIN 1.0/2.3 video gear to an HD-BNC infrastructure.

12G-SDI Maximum Distance
Laird certifies this cable to work at a max transmission distance of 117ft for 12G-SDI even though Belden may show this distance as 149ft. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport
  • 12GHz, 4K UHD Precision 75Ω Video Cable
  • Single Link BNC Simplifies Installations
  • Push-Pull Coupling DIN 1.0/2.3 Connector
  • Optimized Transmission Distance for UHDTV

Specifications:

    Belden 4855R Specifications
  • RG Type: Mini 59
  • Conductor AWG: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Diameter: 0.023"
  • Conductor Material: Silvered Copper
  • Insulation Material: Polyethylene (Gas Injected Foam)
  • Insulation Diameter: 0.102"
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Diameter: 0.159"
  • Overall Cable Diameter: 0.159"
  • Nom. Conductor DCR: 19.7Ω/1000ft
  • Nom. Outer Shield DCR: 3.8Ω/1000ft (12Ω/km)
  • Nom. Capacitance Cond-to-Shield: 16.3pF/ft (53.5pF/m)
  • Nom. Characteristic Impedance: 75Ω
  • Nom. Velocity of Prop.: 82%
  • Return Loss:
    • 5 - 1600MHz, 23dB
    • 1600 - 4500MHz, 21dB
    • 4500 - 12000MHz, 15dB
  • Min. Bend Radius: 1.6"

    DIN 1.0/2.3 RF Connector Specifications
  • Contact Resistance:
    • Center Contact: ≤ 10mΩ
    • Outer Contact: ≤ 3.0mΩ
  • Nom. Impedance: 75Ω
  • Frequency Range: 0 - 12GHz
  • Insulation Resistance: ≥ 1000MΩ
  • Dielectric Withstand Voltage: 750V RMS
  • Voltage Rating: 250V RMS

    Ampehnol RF Connector Specifications:
  • Frequency (Max GHz): 18GHz
  • Impedance: 75Ω

Warranty:

  • 1 Year

Download the 12GDIN4855-MB Series Datasheet


  12GDIN4855-MB001
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 1 Foot
Weight: 0.1378 lbs.
Price:
$32.95
  12GDIN4855-MB003
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 3 Foot
Weight: 0.1548 lbs.
Price:
$34.49
  12GDIN4855-MB006
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 6 Foot
Weight: 0.2058 lbs.
Price:
$38.95
  12GDIN4855-MB010
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 10 Foot
Weight: 0.2738 lbs.
Price:
$44.95
  12GDIN4855-MB015
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 15 Foot
Weight: 0.3588 lbs.
Price:
$52.49
  12GDIN4855-MB025
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 25 Foot
Weight: 0.5288 lbs.
Price:
$66.95
  12GDIN4855-MB050
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 50 Foot
Weight: 0.9538 lbs.
Price:
$104.49
  12GDIN4855-MB075
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 75 Foot
Weight: 1.3788 lbs.
Price:
$141.49
  12GDIN4855-MB100
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 100 Foot
Weight: 1.8038 lbs.
Price:
$178.49
  12GDIN4855-MB125
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 125 Foot
Weight: 2.2288 lbs.
Price:
$215.49
  12GDIN4855MB06IN
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 6 Inch
Weight: 0.1208 lbs.
Price:
$31.49
  12GDIN4855MB18IN
Laird Belden 4855R Male 12G DIN to Male HD-BNC Cable - 18 Inch
Weight: 0.1378 lbs.
Price:
$32.95
