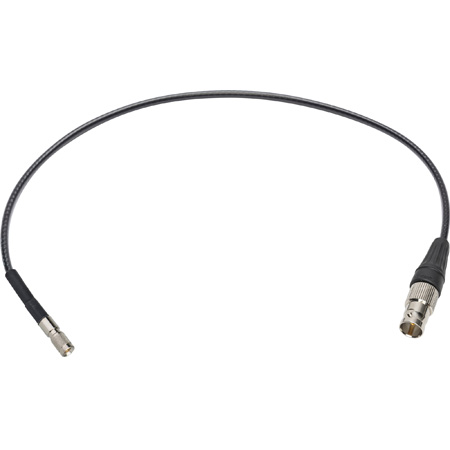

Laird Belden 4855R Male 12G DIN to Female BNC Cable

Get larger image of Laird Belden 4855R Male 12G DIN to Female BNC Cable


The 12GDIN4855-BF Series 12G-SDI DIN1.0/2.3 to 12G-SDI BNC Female video adapter cables by Laird feature Belden's popular 4855R 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight. This cable is perfect for adapting DIN video gear to standard, full-size BNC infrastructure.

Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link BNC Simplifies Installations
  • Push-Pull Coupling DIN 1.0/2.3 Connector
  • Optimized Transmission Distance for UHDTV
  • Transmits up to 150 ft/45m

Specifications:

  • 23 AWG Belden 12GHz Mini-RG59 Coax Cable
  • PVC Inner & Outer Jackets
  • Meets SMPTE ST 2082-1 and ST 2081-1, 424M Standards
  • DIN 1.0/2.3 RF Connector
  • 75 Ohm
  • 12G-SDI Optimized Amphenol HD-BNC Connector
  • Compatible With 12G-SDI Single Link Format Devices
  • Nominal Impedance: 75 Ohm
  • Insulation: Gas Injected Foam HDPE
  • Tinned Copper Braid Shield
  • Nominal Conductor DCR: 19.7 OHM/1000 ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
  • Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet

Warranty:

  • 1 Year

Download the 12GDIN4855-BF Series Datasheet


  12GDIN4855-BF001
Laird 12GDIN4855-BF001 Belden 4855R Male 12G DIN to Female BNC Cable -1 Foot
Weight: 0.1403 lbs.
Price:
$26.95
  12GDIN4855-BF003
Laird 12GDIN4855-BF003 Belden 4855R Male 12G DIN to Female BNC Cable -3 Foot
Weight: 0.1573 lbs.
Price:
$28.49
  12GDIN4855-BF006
Laird 12GDIN4855-BF006 Belden 4855R Male 12G DIN to Female BNC Cable -6 Foot
Weight: 0.2083 lbs.
Price:
$32.95
  12GDIN4855-BF010
Laird 12GDIN4855-BF010 Belden 4855R Male 12G DIN to Female BNC Cable -10 Foot
Weight: 0.2763 lbs.
Price:
$38.95
  12GDIN4855-BF015
Laird 12GDIN4855-BF015 Belden 4855R Male 12G DIN to Female BNC Cable - 15 Foot
Weight: 0.3613 lbs.
Price:
$46.49
  12GDIN4855-BF025
Laird 12GDIN4855-BF025 Belden 4855R Male 12G DIN to Female BNC Cable - 25 Foot
Weight: 0.5313 lbs.
Price:
$60.95
  12GDIN4855-BF050
Laird 12GDIN4855-BF050 Belden 4855R Male 12G DIN to Female BNC Cable - 50 Foot
Weight: 0.9563 lbs.
Price:
$97.95
  12GDIN4855-BF075
Laird 12GDIN4855-BF075 Belden 4855R Male 12G DIN to Female BNC Cable - 75 Foot
Weight: 1.3813 lbs.
Price:
$134.95
  12GDIN4855-BF100
Laird 12GDIN4855-BF100 Belden 4855R Male 12G DIN to Female BNC Cable - 100 Foot
Weight: 1.8063 lbs.
Price:
$172.49
  12GDIN4855-BF125
Laird 12GDIN4855-BF125 Belden 4855R Male 12G DIN to Female BNC Cable - 125 Foot
Weight: 2.2313 lbs.
Price:
$209.49
  12GDIN4855BF06IN
Laird 12GDIN4855BF06IN Belden 4855R Male 12G DIN to Female BNC Cable - 6 Inch
Weight: 0.1233 lbs.
Price:
$25.49
  12GDIN4855BF18IN
Laird 12GDIN4855BF18IN Belden 4855R Male 12G DIN to Female BNC Cable -18 Inch
Weight: 0.1403 lbs.
Price:
$26.95
