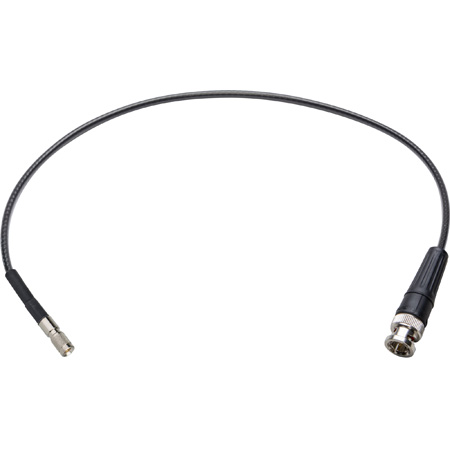

The 12GDIN4855-B Series 12G-SDI DIN1.0/2.3 to 12G-SDI BNC Plug video adapter cables by Laird feature Belden's popular 4855R 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight. This cable is perfect for adapting DIN video gear to standard, full-size BNC infrastructure.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
Features:
- Designed for UHD and 4K Video Transport
- 12 GHz, 4K UHD Precision 75-Ohm Video Cable
- Single Link BNC Simplifies Installations
- Push-Pull Coupling
- DIN 1.0/2.3 Connector
- Optimized Transmission Distance for UHDTV
Specifications:
Belden 4855R Specifications:- RG Type: Mini 59
- Conductor AWG: 23 AWG
- Conductor Stranding: Solid
- Conductor Diameter: 0.023in
- Conductor Material: Silvered Copper
- Insulation Material: Polyethylene (Gas Injected Foam)
- Insulation Diameter: 0.102in
- Outer Shield Layer 1 Type: Tape
- Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
- Outer Shield Layer 2 Type: Braid
- Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
- Outer Jacket Material: Polyvinyl Chloride
- Outer Jacket Diameter: 0.159in
- Overall Cable Diameter: 0.159in
- Nom. Conductor DCR: 19.7 Ohm/1000ft
- Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
- Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m)
- Nom. Characteristic Impedance: 75 Ohm
- Nom. Velocity of Prop.: 82%
- Return Loss:
• 5 - 1600 MHz 23 dB
• 1600 - 4500 MHz 21 dB
• 4500 - 12000 MHz 15 dB - Min. Bend Radius: 1.6in
DIN 1.0/2.3 RF Connector Specifications: - Contact Resistance:
• Center Contact: ≤ 10mΩ
• Outer Contact: ≤ 3.0mΩ - Nom. Impedance: 75Ω
- Frequency Range: 0 ~12GHz
- Insulation Resistance: ≥1000MΩ
- Dielectric Withstand Voltage: 750V RMS
- Voltage Rating: 250V RMS
Ampehnol RF Connector Specifications: - Frequency (Max GHz): 12GHz
- Impedance (Ohms): 75Ω
