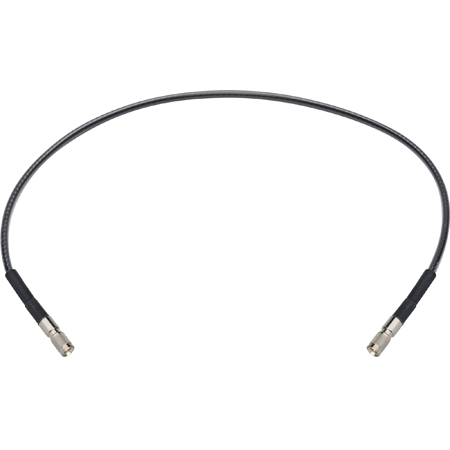

Laird Belden 4855R Male 12G DIN to Male 12G DIN Cable

Get larger image of Laird Belden 4855R Male 12G DIN to Male 12G DIN Cable


The 12GDIN4855 Series 12G-SDI DIN1.0/2.3 to 12G-SDI DIN1.0/2.3 video cables by Laird feature Belden's popular 4855R 12G miniature RG59 cable to fit in tight spaces and minimize cable weight. These cables find their home in the broadcast video market on Evertz routers, AJA & Blackmagic PCIe video cards and more. The Laird cable shop has designed these DIN video cables with the latest 12G infrastructure in mind. The thin profile makes them perfect for studio routing and ENG trucks because of its light weight.

12G-SDI Maximum Distance
Laird certifies this cable to work at a max transmission distance of 117ft for 12G-SDI even though Belden may show this distance as 149ft. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport
  • 12GHz, 4K UHD Precision 75Ω Video Cable
  • Push-Pull Coupling
  • DIN 1.0/2.3 Connectors
  • Optimized Transmission Distance for UHDTV

Specifications:

    Belden 4855R Specifications
  • RG Type: Mini 59
  • Conductor AWG: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Diameter: 0.023"
  • Conductor Material: Silvered Copper
  • Insulation Material: Polyethylene (Gas Injected Foam)
  • Insulation Diameter: 0.102"
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Diameter: 0.159"
  • Overall Cable Diameter: 0.159"
  • Nom. Conductor DCR: 19.7Ω/1000ft
  • Nom. Outer Shield DCR: 3.8Ω/1000ft (12Ω/km)
  • Nom. Capacitance Cond-to-Shield: 16.3pF/ft (53.5pF/m)
  • Nom. Characteristic Impedance: 75Ω
  • Nom. Velocity of Prop.: 82%
  • Return Loss:
    • 5 - 1600MHz 23dB
    • 1600 - 4500MHz 21dB
    • 4500 - 12000MHz 15dB
  • Min. Bend Radius: 1.6"

    DIN 1.0/2.3 RF Connector Specifications
  • Contact Resistance:
    • Center Contact: ≤ 10mΩ
    • Outer Contact: ≤ 3.0mΩ
  • Nom. Impedance: 75Ω
  • Frequency Range: 0 - 12GHz
  • Insulation Resistance: ≥ 1000MΩ
  • Dielectric Withstand Voltage: 750V RMS
  • Voltage Rating: 250V RMS

Warranty:

  • 1 Year

Download the 12GDIN4855 Series Datasheet


  12GDIN4855-001
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 1 Foot
Weight: 0.1778 lbs.
Price:
$21.49
  12GDIN4855-003
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 3 Foot
Weight: 0.1948 lbs.
Price:
$22.95
  12GDIN4855-006
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 6 Foot
Weight: 0.2458 lbs.
Price:
$27.49
  12GDIN4855-010
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 10 Foot
Weight: 0.3138 lbs.
Price:
$33.49
  12GDIN4855-015
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 15 Foot
Weight: 0.3988 lbs.
Price:
$40.95
  12GDIN4855-025
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 25 Foot
Weight: 0.5688 lbs.
Price:
$55.49
  12GDIN4855-050
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 50 Foot
Weight: 0.9938 lbs.
Price:
$92.49
  12GDIN4855-06IN
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 6 Inch
Weight: 0.1608 lbs.
Price:
$19.95
  12GDIN4855-075
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 75 Foot
Weight: 1.4188 lbs.
Price:
$129.49
  12GDIN4855-100
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 100 Foot
Weight: 1.8438 lbs.
Price:
$166.95
  12GDIN4855-125
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 125 Foot
Weight: 2.2688 lbs.
Price:
$203.95
  12GDIN4855-18IN
Laird Belden 4855R 12G Male to Male DIN 1.0/2.3 Cable - 18 Inch
Weight: 0.1778 lbs.
Price:
$21.49
