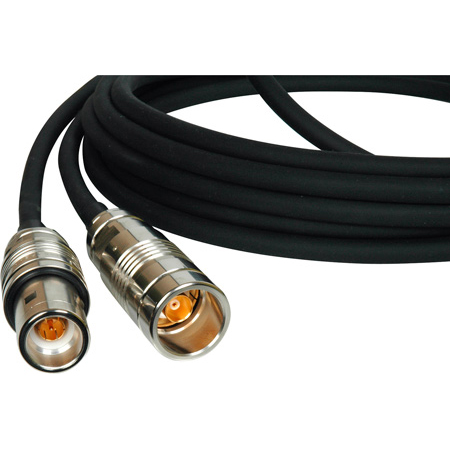

The Laird TRI-1857A series of triaxial cable assemblies are designed for ENG, studio, and remote production environments where a single terminated assembly needs to withstand repeated field use. Suitable for broadcast engineers and system integrators specifying or building out pre-terminated camera assemblies for camera-to-CCU applications.
In the television industry, triax is heavily utilized and by leveraging frequency-division multiplexing, a single triaxial cable simultaneously multiplexes and transmits power, signals, and communication. The power is delivered directly to the camera head, the signals transmit high-definition or analog video feeds, multi-channel audio, and camera control data to the CCU, and the communication carries intercom feeds, tally light signals, which alert operators when they are live, and return program video. Because of this, venues like sports arenas often have permanent triax lines installed so visiting television crews can simply plug in without running miles of individual cables.
Features:
- High-Quality Canare Triaxial Connectors
- Flexible Belden 1857A Cable
- Dual Bare Copper Braid Shielding for Strong RF Rejection
- Indoor/Outdoor Rated
- Push-lock Connector Mechanism for Secure Mating
Specifications:
Belden RG-59 1857A Cable- Construction Type: RG-59
- Conductor Size: 22 AWG
- Conductor Stranding: 19x34
- Conductor Nom. Diameter: 0.031" (0.78mm)
- Conductor Material: Bare Copper
- Insulation Material: Polyethylene
- Insulation Nom. Diameter: 0.143" (3.63 mm)
- Inner Shield Type: Braid
- Inner Shield Material/Coverage %: Bare Copper/95%
- Inner Jacket Material: Polyethylene
- Inner Jacket Nom. Diameter: 0.216" (5.49 mm)
- Outer Shield Type: Braid
- Outer Shield Material/Coverage %: Bare Copper/95%
- Outer Jacket Material: Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.360" (9.14 mm)
- Overall Cable Nom. Diameter: 0.360" (9.14 mm)
- Return Loss:
- 21 dB @ 5 - 850 MHz
- 15dB @ 850 - 3000 MHz - Attenuation:
- 0.30 dB/100ft @ 1MHz
- 4.50 dB/100ft @ 270MHz
- 10.10 dB/100ft @ 1000MHz
- 21.40 dB/100ft @ 3000MHz - Nom. Conductor DCR: 14.0 Ohm/1000ft
- Nom. Inner Shield DCR: 2.5 Ohm/1000ft (8.2 Ohm/km)
- Nom. Outer Shield DCR: 1.6 Ohm/1000ft (5.2 Ohm/km)
- Nom. Capacitance Cond-to-Shield: 17.0 pF/ft (55.8 pF/m)
- Nom. Characteristic Impedance: 75 Ohm
- Nom. Velocity of Prop: 77%
- Voltage Rating: 300V
- Operating Temperature: -58°F - 176°F (-50°C - 80°C)
- Installation Min Bend Radius: 3.6" (91 mm)
- Max. Pull Tension: 102lbs (46.3 kg)
Canare Triaxial Connectors - Nom. Impedance (Ohms): 75
- Bandwidth: DC-1.5 GHz
- VSWR: ≤1.1
- Return Loss: ≥26dB
- Dielectric Material: PTFE & POM
- Insulation Resistance: ≥5000 MΩ
- Withstand Voltage: 1500V AC 1 min.
- Center Contact Resistance: ≤10mΩ
- Operating Temperature: -40° - 185°F (-40°C - 85°C)
- Lifetime: 1000 Mating Cycles
