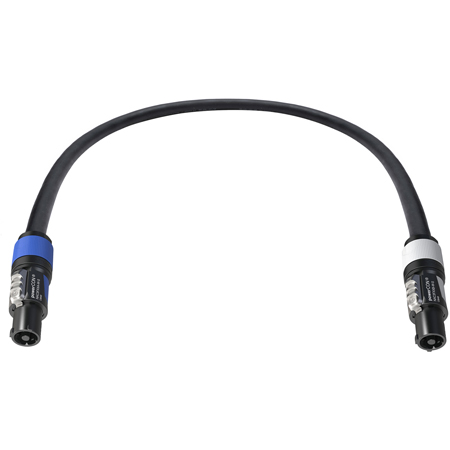

Laird Neutrik powerCON Locking 3-pole 20Amp A type to B type Power Cables

Get larger image of Laird Neutrik powerCON Locking 3-pole 20Amp A type to B type Power Cables


powerCON® is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 20A/250V ac. Color coded for easy identification, powerCONr offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. The contacts are designed to prevent damage from arcing when disconnected while under load. The cable is a 300V 12 AWG UL Listed 3 Conductor TPrene Jacketed Heavy Duty Power Cord - Black. Professionally assembled in our in-house cable shop for powering various Mackie, Turbosound, JBL and other gear that utilize the Neutrik powerCON® connector.

Features:

  • Neutrik powerCON XX Series
  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • Flexibility in Low Temperatures
  • IP20 Rated
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green

    Neutrik powerCON® XX Series:
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: > 3 kVac (after mating cycle)
  • Insulation Resistance: > 10 GΩ (initially)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: typically 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP20
  • Temperature Range: -33°F to 80°F
  • Rating Europe: EN 60320-1: 16A 250V AC, CBC
  • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC

Warranty:

  • 1 Year

Download the PWRCN20-AB Series Datasheet


  PWRCN20-AB-3
Laird PWRCN20-AB-3 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 3 Foot
Weight: 0.6524 lbs.
Price:
$36.95
  PWRCN20-AB-5
Laird PWRCN20-AB-5 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 5 Foot
Weight: 0.9524 lbs.
Price:
$40.49
  PWRCN20-AB-10
Laird PWRCN20-AB-10 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 10 Foot
Weight: 1.7024 lbs.
Price:
$50.49
  PWRCN20-AB-15
Laird PWRCN20-AB-15 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 15 Foot
Weight: 2.4524 lbs.
Price:
$59.95
  PWRCN20-AB-20
Laird PWRCN20-AB-20 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 20 Foot
Weight: 3.2024 lbs.
Price:
$69.95
  PWRCN20-AB-30
Laird PWRCN20-AB-30 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 30 Foot
Weight: 4.7024 lbs.
Price:
$89.49
  PWRCN20-AB-50
Laird PWRCN20-AB-50 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 50 Foot
Weight: 7.7024 lbs.
Price:
$127.95
  PWRCN20-AB-100
Laird PWRCN20-AB-100 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 100 Foot
Weight: 15.2024 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$225.49
  PWRCN20-AB-25
Laird PWRCN20-AB-25 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 25 Foot
Weight: 3.9524 lbs.
Price:
$79.49
  PWRCN20-AB-150
Laird PWRCN20-AB-150 Neutrik powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 150 Foot
Weight: 22.7024 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$330.95
