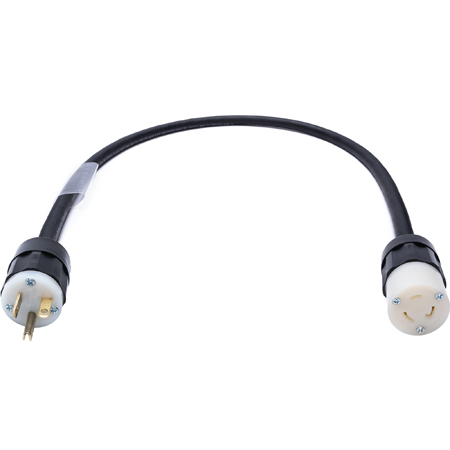

The LDC-20NM-20TF 20 Amp NEMA Adapter cable is a heavy duty 12/3 AC cable that�s perfect for location shoots, studio sets and theatrical stages to power lighting, audio and video gear. These cables are built with SJOOW heavy duty 12/3 wire and terminated with Leviton 20 Amp male to 20 Amp locking female plugs. The Twistlock design on the female end provides a secure AC connection to ensure your gear is always up and running!
Features:
- Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
- Rugged 20-amp connectors
- UL-recognized components
Specifications:
Laird PWR-12/3-TP Cable:- Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25 Amps
- Outer Diameter: 0.425in - 0.476in
- Nom. Voltage: AC U 300V
- Temperature:
• Flexing: -4°F to 194°F (-20°C to +90°C)
• Static: -40°F to 194°F (-40°C to +90°C) - Min Bend Radius:
• Flexing: 4.76in
• Static: 2.85in - Weight: 0.14lbs/ft
Leviton Connectors: - Amperage:
• 2323: 20 Amps
• 5366: 20 Amps - Voltage:
• 2323: 250 VAC
• 5366: 125 VAC - Blade/Contact Material: Solid Brass
- Body Material: Impact Modified Nylon
Warranty:
