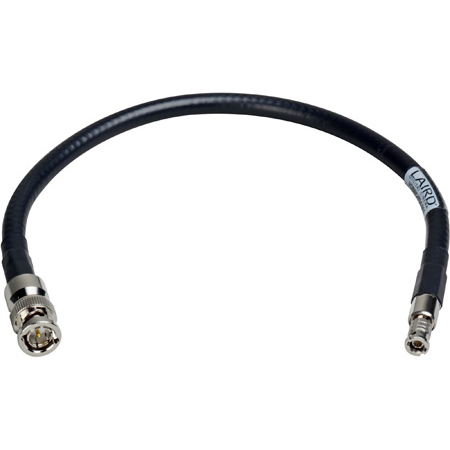

The Laird HDBNC4794 Series of HD-BNC to BNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HD-BNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4794R coax rated for 12G-SDI runs over 300 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 225 Feet for 12G-SDI even though Belden may show this distance as 321 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance
Features:
- 12GHz, 4K UHD Signal Transmission
- Durable 16AWG, Precision Coax Cable
- 12G SDI Optimized Amphenol BNC Connectors
- Superior Pull Strength for Secure Connections
- Maximize broadcast signal integrity
- Meets SMPTE 259, 292, 424, 425, 2081-1, 2082-1 Standards
Specifications:
Belden 4794R Cable- RG Type: Series 7
- Conductor Size: 16AWG
- Conductor Stranding: Solid
- Conductor Nom. Diameter: 0.051" (1.29mm)
- Conductor Material: Silvered Copper - SC
- Insulation Material: Polyethylene (Foam) - PE
- Insulation Nom. Diameter: 0.225" (5.72mm)
- Outer Shield Layer 1 Material/Coverage%: Tri-Laminate Tape/100%
- Outer Shield Layer 2 Material/Coverage%: Tinned Copper (TC) Braid/95%
- Outer Shield Layer 3 Material/Coverage%: Bi-Laminate Tape/100%
- Outer Jacket Material: Polyvinyl Chloride - PVC
- Outer Jacket Nom. Diameter: 0.320" (8.13mm)
- Overall Cable Diameter: 0.320" (8.13mm)
- Return Loss:
- 5 - 1600 MHz 23 dB
- 1600 - 4500 MHz 21 dB
- 4500 - 12000 MHz 15 dB - Attenuation:
- 100 MHz 1.54 dB/100ft
- 720 MHz 3.96 dB/100ft
- 2250 MHz 7.25 dB/100ft
- 12000 MHz 19.45 dB/100ft - Nom. Conductor DCR: 4.0 Ohm/1000ft
- Nom. Outer Shield DCR: 1.8 Ohm/1000ft (5.9 Ohm/km)
- Nom. Capacitance Cond-to-Shield: 16.0 pF/ft (52.5 pF/m)
- Nom. Characteristic Impedance: 75 Ohm
- Nom. Velocity of Prop%: 85%
- Voltage Rating: 300 V (CMR, CMG)
- Bend Radius: 3.2" (81 mm)
- Max Pull Tension: 84 lbs (38 kg)
- Temperature: -4°F - 167° (-20°C - 75°C)
Amphenol Connectors - Body Finish: Nickel
- Body Material: Brass
- Contact Finish: Gold
- Contact Material:
- BNC: Brass
- HD-BNC: Phosphor Bronze - Frequency (Max GHz):
- BNC: 12
- HD-BNC: 18 - Impedance (Ohms): 75
- Insulator Material: PTFE
- Lifetime: 500 Matings
