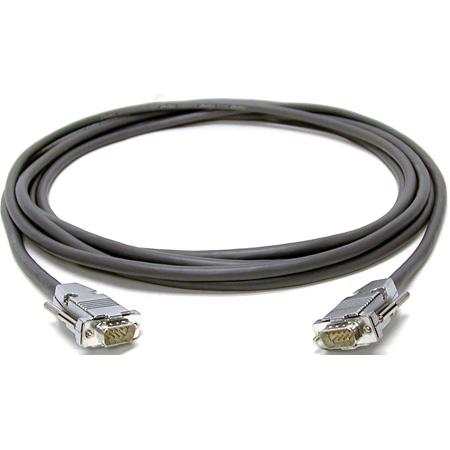

The Laird D9M Series of RS-422 control cables are engineered for reliable, high-performance serial communication; each cable assembly is pre-terminated with 9-pin D-Sub connectors and designed to meet the demands of system integration, professional AV, broadcast, and industrial control applications. Available in Male-to-Male and Male-to-Female configurations.
Belden 9538 Multi-Conductor Cable
The Laird D9M Series of RS-422 control cables feature the Belden 9538 Multi-Conductor Cable. It is a computer EIA RS-232 cable, with 24 AWG (7x32) stranded tinned copper conductors, semi-rigid PVC insulation in an overall Beldfoil Shield. It has a bend radius of 2.7 inches, along with a max pull tension of 50 pounds, making it extremely reliable for all of your needs.
Features:
- Indoor Rated (Not Riser or Plenum)
- Semi-Rigid Insulation
- Pin out according to Sony's standards
Specifications:
Belden 9538- Number of Elements: 8
- Conductor AWG: 24 AWG
- Conductor Stranding: 7x32
- Conductor Material: Tinned Copper
- Insulation Material: Polyvinyl Chloride (Semi-Rigid)
- Insulation Thickness: 0.011" (0.28mm)
- Insulation Diameter: 0.044" (1.1mm)
- Outer Shield Type: Tape
- Outer Shield Material/Coverage: Bi-Laminate (Alum+Poly)/100%
- Drainwire Type: 24 AWG (7x32) Tinned Copper
- Outer Jacket Material: Polyvinyl Chloride
- Outer Jacket Thickness: 0.032" (0.81mm)
- Outer Jacket Diameter: 0.224" (5.69mm)
- Overall Cable Diameter: 0.224" (5.69mm)
- Nom. Conductor DCR: 25Ω/1000ft
- Nom. Capacitance Cond-to-Cond: 33pF/ft (110pF/m)
- Nom. Capacitance Cond-to-Other (Conds+Shield): 65pF/ft (210pF/m)
- Voltage: 300V
- Temperature: -22°F - 176°F (-30°C - 80°C)
- Bend Radius:
• Stationary: 2.7" (69mm)
• Installation: 2.7" (69mm) - Max Pull Tension: 50lbs (23kg)
9-Pin Male D-Sub - Material: Die-Cast Zinc Alloy
- Plating: Nickel
Warranty:
