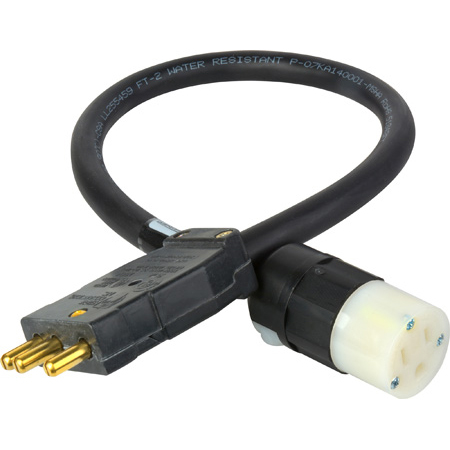

Male 3-Pin Bates Lighting Stage Pin to Female 3-Prong Industrial Grade AC Receptacle Adapter Cable. Allows you to use stage lighting with conventional 3 prong wall outlets and extension cords. Wired with 12/3 SJO cable.
Features:
- Leviton NEMA 5-15 15-Amp and Bates Stage Pin connectors
- Standardized, heavy, rubber-jacketed cable suitable for dry, moist, or wet rooms and outdoor use
- Resistant to oil, ozone, weathering effects, greases, water, sun, and UV radiation
- Flammability Rated HB or better UL94
Specifications:
- 12/3 TP Cable:
- Type: SJOOW
- Nom Outer Diameter: 11.45mm
- Outer Jacket: Black Rubber (CPE)
- Insulation: Rubber (EPR)
- Number of conductors x AWG: 3x12
- Min. Bend Radius:
-Flexing: 4.76in
-Static: 2.85in - Temp. Range Flexing: -4°F to 194°F (-20°C to +90°C)
- Temp. Range Static: -40°F to 194°F (-40°C to +90°C)
- Max. Operating Temp of Conductor: 194°F (+90°C)
- Nominal Voltage: AC U 300 V
- Test Voltage Conductor: 2500V
- Carrying Capacity: 25 Amps
- Weight: 0.14lbs/ft (217kg/km)
Leviton 5-15 Connectors: - Amperage: 15 Amp
- Current Interrupting: Certified for full rated current
- Dielectric Voltage: Withstands 2000V per UL498
- Voltage: 125 VAC
- Back Cover: Thermoplastic
- Body Material: Impact modified Nylon
- Cord-Clamp: Nylon
- Clamp Insert: Nylon
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Bates Stage Pin Connector: - Max Amperage: 20 Amps
- Max Voltage: 125V
- Housing Material: Thermoplastic
- Contact Material: Brass
- Temperature Rating: -4°F to 284°F (-20°C to 140°C)
