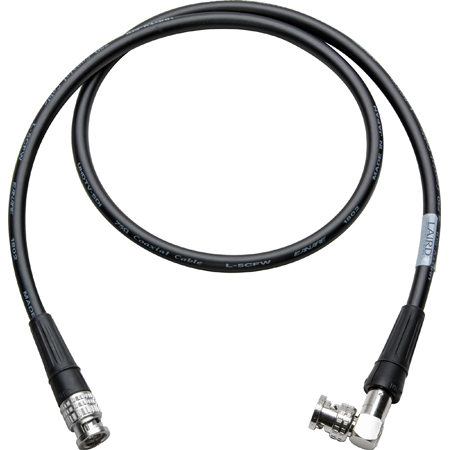

Laird SD6-BBA-001 Canare L-5CFW HD-SDI / SMPTE 424M RG6 BNC to Right Angle BNC Cable - Black - 1 Foot

Get larger image of Laird SD6-BBA-001 Canare L-5CFW HD-SDI / SMPTE 424M RG6 BNC to Right Angle BNC Cable -  Black - 1 Foot


This super flexible series is hand crafted in our shop with Canare L-5CFW HD-Serial Digital Flexible RG6 Coaxial Cable and Canare BCP-B51F and BCP-LC5F BNC Connectors. The Canare L-5CFW coax used in our BNC cables is 100% sweep tested to conform to SMPTE 259M, 292M and 424M standards. This means our BNC cable is ready to meet today's requirements for 3 Gbps signal / data serial interface as well as your most demanding productions.

Features:

  • Assembled with Canare L-5CFW 75 Ohm Precision HD Serial Digital Video Coaxial Cable for Professional Broadcast Performance
  • Cables Feature Canare L-5CFW HDTV-SDI Cable & BCP-B51F/BCP-LC5F True 75 Ohm Connectors
  • Shipped in Black - Also available from our shop in Red, Green and Blue

Specifications:

  • Meets SMPTE 259M, 292M,424M Standards
  • Structural Return Loss: >20dB at 2GHz
  • Nominal O.D.: 0.303
  • AWG: 18 Solid
  • Shield and Coverage: 100 Percent Aluminum Foil TAC Braid >93 Percent
  • Nominal Capacitance: 17 Pf / Ft.
  • Nominal Impedance: 75 Ohms

Warranty:

  • 1 Year

Download the SD6-BBA Series Datasheet


  SD6-BBA-001
1 Foot
Weight: 0.1904 lbs.
Price:
$38.95
  SD6-BBA-18IN
18 Inch
Weight: 0.1904 lbs.
Price:
$38.95
  SD6-BBA-003
3 Foot
Weight: 0.2504 lbs.
Price:
$40.49
  SD6-BBA-006
6 Foot
Weight: 0.4304 lbs.
Price:
$43.95
  SD6-BBA-010
10 Foot
Weight: 0.6704 lbs.
Price:
$48.95
  SD6-BBA-015
15 Foot
Weight: 0.9704 lbs.
Price:
$54.95
  SD6-BBA-025
25 Foot
Weight: 1.5704 lbs.
Price:
$66.95
  SD6-BBA-050
50 Foot
Weight: 3.0704 lbs.
Price:
$96.95
  SD6-BBA-075
75 Foot
Weight: 4.5704 lbs.
Price:
$127.49
  SD6-BBA-100
100 Foot
Weight: 6.0704 lbs.
Price:
$157.49
  SD6-BBA-125
125 Foot
Weight: 7.5704 lbs.
Price:
$187.49
  SD6-BBA-150
150 Foot
Weight: 9.0704 lbs.
Price:
$217.95
  SD6-BBA-200
200 Foot
Weight: 12.0704 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$278.49
