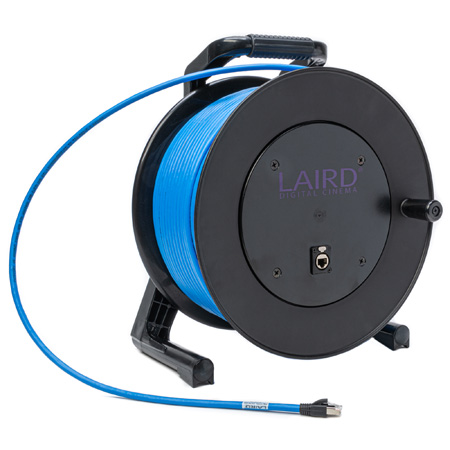

Another exclusive!! Designed to protect and serve, the ProReel helps users quickly deploy cable and conveniently reel it up when the shoot is over. This series features high quality Category 6 cable built into a lightweight and extremely tough reel. Simply untwist the cable as it spools onto the reel in order to prevent damage. The CAT6 series is ideal for long haul media delivery through the use of AV Baluns.
10G Ethernet Max Distance
Laird certifies this Cat6 cable to 200 ft (61 m) for 10G Ethernet and 400 ft (121 m) for 1G Ethernet, validated through Bit Error Rate (BER) testing. IEEE 802.3 specifies a maximum of 180 ft (55 m) for Cat6 Ethernet applications; exceeding this threshold risks signal degradation and link failure. Supported signal types-including Ethernet, PoE, and AV-over-IP-each carry distinct distance limitations. Conductor gauge (AWG) affects signal attenuation, power delivery, and usable distance-higher AWG conductors may reduce maximum range. Always consult your application's specifications prior to deployment.
Laird Tech Note: Compliant with all PoE Specs, when installed according to TIA guidelines.
Features:
- Lightweight, Rugged Reel
- High Quality Category 6 Cable
- 50 Feet
Specifications:
- ETL Riser Rated CMR Cat 6 Shielded STP Cable:
- 8 Conductor
- 23 AWG
- Solid BC (Configured as 4 Pairs)
- Enhanced 550MHz Bandwidth
- ETL Verified to TIA 568-C.2 & ISO/IEC 11801
- 1000 Mbps Gigabit Ethernet
- 10 Gig Shielded RJ45 CAT6A Connector:
- Max cable OD: 8.5mm/0.335
- Max conductor OD: 1.35mm/0.053
- UL and RoHS compliant
- JackReel F4:
- Rear Thumb-Wheel Hub Lock
- Ergonomic Carry Handle
- Hub Diameter: 6.5"
- Outside Hub: 12.5"
- Foot Base Width: 10.6"'
- Overall Height: 14.3"
