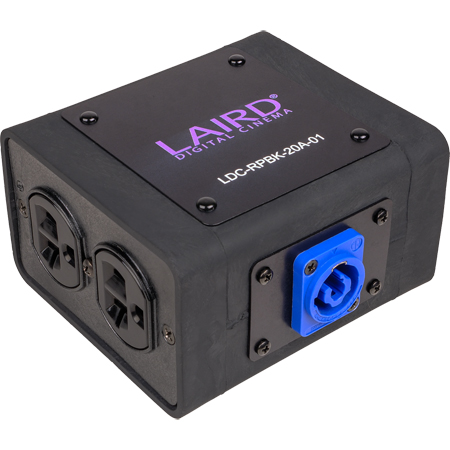

The Laird LDC-RPBK-20A-01 is a 20 Amp power distribution splitter box that provides power to your NEUTRIK powerCON connectors. Feed-thru connectors allow for daisy-chaining of multiple boxes, ensuring uninterrupted power delivery across various setups. Encased in a rugged rubberized enclosure, it also features an M10 threaded insert that enables versatile and easy integration with other equipment or truss systems. The LDC-RPBK-20A is ideal for professional audio and lighting rigging and live events.
The LDC-RPBK-20A-01 is perfect for whenever you need power, but space is limited. With a small form factor, it's able to fit into many tight fighting, awkward spaces that other boxes may not be able to. Combine that with the quality of NEUTRIK powerCON connectors and you'll be bringing this to every venue.
NEUTRIK powerCON XX Receptacles
The LDC-RPBK-20A-01 features the NAC3MPXXA and NAC3MPXXB locking mains connector with 3/16 inch flat tab terminals. They are a lockable single phase connector with fast and easy twist lock latching system. The powerCON XX Series connectors are perfect for rugged solutions, and even allows for hot plugging for all your quick change needs.
Features:
- High-Quality Neutrik powerCON Connectors
- Rugged Rubber Enclosure is Fully Insulated and Resistant to Shock, Impact, and Corrosion
- Feed-through Option Allows Multiple Boxes to be Placed Along the Same Feed
- M10 Truss Mounting Insert that Enables Easy Mounting
Specifications:
Overall Specifications- Rubber Quad Box Dimensions: 3.38" x 2.5" x 3.9"
- Input:
• x1 powerCON Type A - Output:
• x1 powerCON Type B
• 4x NEMA 5-20R - Rated Amperage: 20 Amps
Neutrik powerCON Connectors - Contact Resistance: ≤ 2 mΩ
- Dielectric Resistance: 4 kVdc / 2.8 kVac
- Insulation Resistance: > 1 GΩ
- Rated Amps: 20 Amps
- Rated Voltage: 250 V AC
- Lifetime: > 5000 mating cycles
5-20R Nema Edison Outputs - Current Rating: 20 Amps
- Voltage Rating: 125 V AC
- Nema Rating: 5-20R
