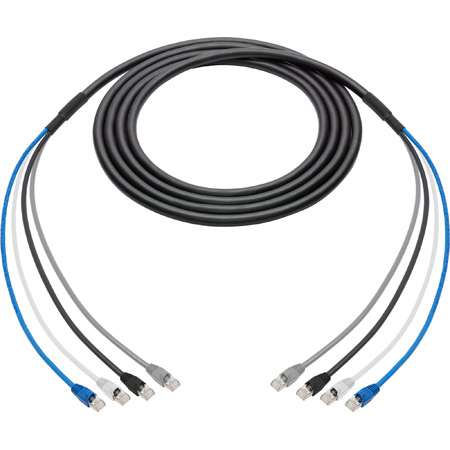

Ease your AV Over IP network installations with Laird 4C6SNK Series 4-Channel CAT6 Ethernet snake cables. These cables are a great fit for AV Over IP applications where multiple and/or redundant backup channels are required. Cables are assembled using an exclusive Laird bundled 4-channel Ethernet Snake cable featuring a Belden 3612 CAT6 equivalent. These cables are perfect for premise horizontal Category 6 wiring designed for Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422 applications.
Laird Tech Note: Compliant with all PoE Specs, when installed according to TIA guidelines.
Features:
- 4 Cables in One Single Jacket
- Designed for Ethernet Applications
- Keep Cables Organized for Quick Cable Runs
- Cat6 Belden Cable
- Standard RJ45 Connectors
Specifications:
Belden 3612 Riser/CMR Cat 6+ Premium Premise Horizontal Cable (4x Bundle)- Conductor AWG: 23
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Conductor No. of Pairs: 4
- Conductor Count: 8
- Total Number of Pairs: 4
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Max. Conductor DCR: 77 Ohm/km
- Max. DCR Unbalance: 3%
- Max. Capacitance Unbalance: 330 pF/100m
- Nom. Mutual Capacitance: 15.5 pF/ft
- UL Voltage Rating: 300 V (CMR)
- UL Rating: 75°C
- Operating Temp: -20°C - 75°C
- Installation Temp: 0°C - 50°C
- Storage Temp: -20°C - 75°C
- Max. Pull Tension: 25 lbs
- Environmental Suitability: Riser, Indoor
- Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
10Gig Shielded RJ45 Connectors
