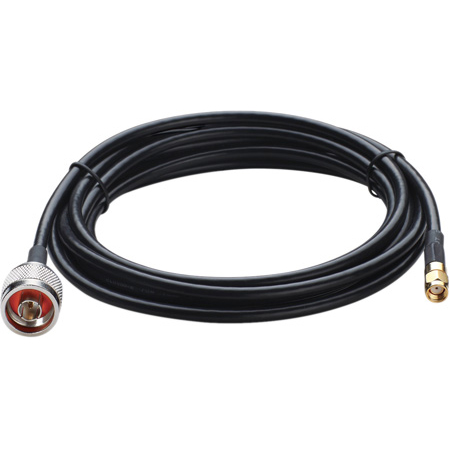

Laird Wi-Fi 802.11 a/b/g LMR400 RP-SMA Male to N-Type Male TP-Link Cables

Get larger image of Laird Wi-Fi 802.11 a/b/g LMR400 RP-SMA Male to N-Type Male TP-Link Cables


RP-SMA is the most commonly used connector for wireless routers. Relocate your current Wi-Fi antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems.

Features:

  • Amphenol Connex SMA Reverse Polarity Connector
  • Amphenol Connex 172102H243 Male N Type Connector
  • 50 Ohm wireless transmission coax cable

Specifications:

  • Belden 7810A 50 Ohm Wireless Transmission Coax
  • RG-8 Type Cable
  • RG Type: 8
  • AWG: 10
  • Stranding: Solid
  • Nom. Diameter: 0.108in
  • Material: BCCA - Bare Copper Covered Aluminum
  • Nom. Conductor DCR: 1.3 Ohm/1000ft
  • Nom. Outer Shield DCR: 2.0 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 23 pF/ft
  • Nom. Impedance: 50 Ohm
  • Nom. Velocity: 86%
  • Non-UL Voltage Rating: 300 V
  • Operating Temperature: -30°C to +75°C
  • Max. Pull Tension: 150 lbs
  • Environmental Suitability: Indoor/Outdoor, Indoor

Warranty:

  • 1 Year

Download the 400-RPSMA-N Series Datasheet


  400-RPSMA-N-10
Laird 400-RPSMA-N-10 Wi-Fi 802.11 a/b/g-Compatible Belden 7810A Reverse-Polarized SMA Male to N-Type Male TP-Link Cable
Weight: 1.0002 lbs.
Price:
$105.95
  400-RPSMA-N-15
Laird 400-RPSMA-N-15 Wi-Fi 802.11 a/b/g-Compatible Belden 7810A Reverse-Polarized SMA Male to N-Type Male TP-Link Cable
Weight: 1.4502 lbs.
Price:
$124.95
  400-RPSMA-N-35
Laird 400-RPSMA-N-35 Wi-Fi 802.11 a/b/g-Compatible Belden 7810A Reverse-Polarized SMA Male to N-Type Male TP-Link Cable
Weight: 3.2502 lbs.
Price:
$201.95
