When it comes to critical SMPTE ST-2110 signals, relying on a standard off-the-shelf patch cable is a risk you can't afford! Ensure the highest signal integrity, shielding, and long-term reliability with the Laird ST2110-6A series cables engineered for the demanding requirements of modern IP-based media infrastructures.

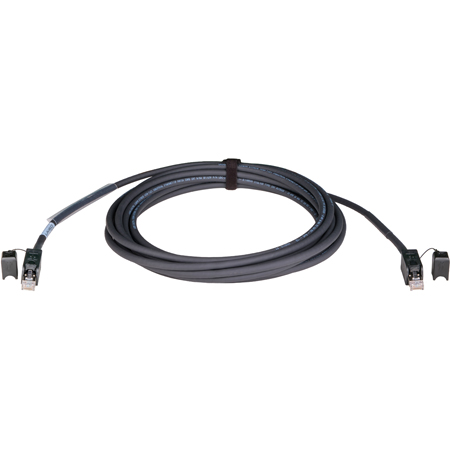

This cable is a premium, high-performance CAT6A patch cable specifically designed to support the next generation SMPTE ST-2110 signals. Cables feature a durable backshell to protect the RJ45 latching mechanism. As broadcasters and production facilities transition to fully uncompressed video, audio, and data over IP networks, dependable infrastructure is critical - and this cable delivers.
Built to meet or exceed ANSI/TIA-568.2-D performance standards, the LDC-ST2110-6A features an industrial-grade TPE jacket is not only sunlight and weld spatter resistant, but also provides a high degree of flexibility, making it ideal for dynamic production environments where durability and maneuverability are essential.
The cable features dual shielding - a robust overall braid and foil shield - which delivers exceptional protection against electromagnetic interference (EMI) and enhances grounding performance, crucial for maintaining signal clarity in high-noise environments. This construction makes it especially well-suited for mission-critical applications in live production, OB trucks, broadcast studios, and enterprise AV deployments.
Additionally, ST2110-6A series cables are fully Power over Ethernet (PoE) compliant, ensuring reliable power delivery alongside data transmission, while maintaining CAT6A channel performance.
Whether you're upgrading an existing facility or building an IP infrastructure from the ground up, the Laird ST2110-6A provides a solid foundation required to handle the bandwidth-intensive demands of SMPTE ST-2110 workflows while also providing a cable which can be used in the harshest outdoor conditions.
Features:
- A Durable Backshell Protects the RJ45 Locking Mechanism
- Meets SMPTE ST 2110 Standards
- Highly Flexible Industrial CAT6a Ethernet Cable with High-Quality Backshells over Standard RJ45s
- PoE Compliant and Meets CAT6a Channel Requirements up to 70m When Installed per TIA TSB-184 Recommendations
- Weld Spatter and UV-resistant TPE Jacketing
- NEC (UL)/CEC (UL) TYPE CMX OUTDOOR Approved Cable
Specifications:
Laird ST2110-6A Cable- Conductor AWG: 26 AWG
- Conductor Material: 7/34 Stranded Tinned Copper
- Conductor Material: .019"
- Insulation Material: High-Density Polyethylene
- Insulation Wall Thickness: .009"
- Insulation Diameter: .036"
- Pairs: Color-Coded Singles Twisted into Pairs with Central Spline
- Pairs Diameter: .072"
- Shield 1/Coverage %: 38 AWG tinned copper braid (80%)
- Shield 2/Coverage %: Aluminized polyester foil shield (100% coverage)
- Shield Braid Thickness: .195"
- Jacket Wall Thickness: .040"
- Jacket Material: Thermoplastic elastomer (TPE)
- Cable O.D.: .275"
- Temperature Range: -40°F - 167°F (-40°C - 75°C)
- Tensile Strength Retention: 80%
- Elongation Retention: 100%
- Capacitance Nom.: 13.5 PF/FT. AT 1 MHz
- Dielectric Withstanding: 1500V RMS
- Voltage Rating (Max): 300V
- D.C. Resistance (Max): 42.6 Ω/1,000'
- Nom. Impedance:
- 100 ± 15 Ω 1 - 100 MHz
- 100 ± 20 Ω 100 - 500 MHz - Return Loss:
- 1 ≤ ƒ < 10 MHz
- 10 ≤ ƒ < 20 MHz
- 20 ≤ ƒ ≤ 100 MHz
- 100 < ƒ ≤ 500 MHz - Insertion Loss: 1 ≤ ƒ ≤ 500 MHz
- Delay: 4 ≤ ƒ ≤ 500 MHz
- Velocity of Propagation: 68%
RJ-45 Connector - Shielding: Shielded
- Shield Material: Copper Alloy
- Housing Material: Polycarbonate (PC)
- Contact Material: Copper Alloy
- Contact Finish: Gold
