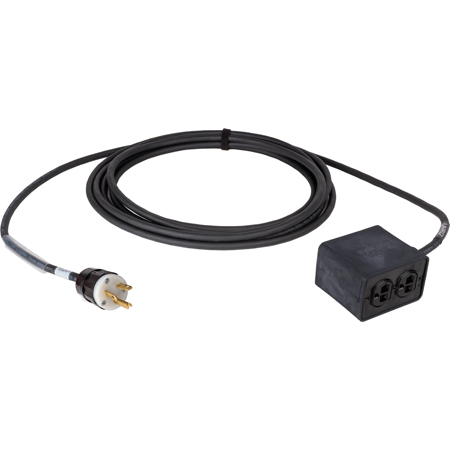

The Laird SSPC-NC series AC power extension cables are engineered to deliver reliable, high-performance power solutions in the toughest environments. Featuring rugged SJOOW Laird PWR-12/3-TP cable paired with a fully insulated, heavy-duty Leviton rubberized two-gang electrical box, these cables resist shock, impact, and corrosion - ensuring durability you can trust. Perfect for movie and TV production, equipment rentals, theaters, concert tours, live events, and industrial maintenance, the SSPC-NC series offers versatile power options with multiple standard lengths and both 15-amp and 20-amp configurations to meet your exact needs.
The Laird PWR-12/3-TP SJOOW power cable is a heavy-duty, portable junior service cord rated for 300-volt applications. It has synthetic rubber insulation covered by a neoprene rubber jacket that is resistant to abrasion, dirt, oil, and water. You can use it indoors and outdoors in any weather. You can use it for powering portable 120V and 240V single-phase power tools, appliances, small motors, and other portable tools and equipment. It can be used for 208V three-phase applications as well.
The Leviton Two-Gang Portable Electrical Outlet Box is a great solution for treating portable power pendants and stringers for temporary power applications. It is extremely resistant to heat and harsh chemicals and the adjustable strain relief provides protection for the PWR-12/3-TP power cable.
Features:
- Fully Insulated Heavy-duty Leviton Rubberized Quad Box
- Laird's Flexible and Durable PWR-12/3-TP SJOOW power cable
- Resistant to shock, impact, and corrosion elements
Specifications:
Overall Specifications:- Rubber Quad Box Dimensions: 3.38" x 2.5" x 3.9"
- Outputs: x4 NEMA 20-amp outlets
Laird PWR-12/3-TP: - Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25 Amps
- Outer Diameter: 0.425in - 0.476in
- Nom. Voltage: AC U 300V
- Temperature:
• Flexing: -4øF to 194øF (-20øC to +90øC)
• Static: -40øF to 194øF (-40øC to +90øC) - Min Bend Radius:
• Flexing: 4.76in
• Static: 2.85in
Eaton Outlets: - Amperage Rating: 20 Amps
- Voltage Rating: 125 Volts
Leviton Plug: - Amperage Rating: 20 Amps
- Voltage Rating: 125 VAC
- Dielectric Voltage: Withstands 2000V per UL498
