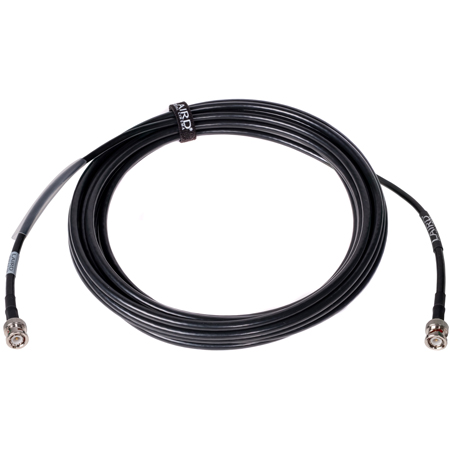

Laird's RG8X-B-B coaxial cable assemblies are engineered to deliver reliable, high-performance signal transmission for a wide range of wireless and antenna based communication applications. These assemblies feature the premium Belden 9258 RG-8X coaxial cable, known for its low signal loss and high shielding effectiveness, combined with rugged Amphenol RF 112533 50 Ohm BNC male connectors on both ends. This combination results in a durable and high-quality cable construction that ensures consistent electrical performance even in demanding environments.
Designed for versatility, the RG8X-B-B series is well-suited for both indoor and outdoor installations. It is ideal for use in point-to-point and point-to-multipoint wireless antenna systems, offering dependable connectivity for mission-critical communication links. These assemblies are also an excellent choice for applications such as wireless data transmission, RF testing, video surveillance, and broadcast systems, where signal integrity and long-term reliability are essential.
Features:
- Thin and Flexible Belden 9258 RG-8X Coax Cable
- High-quality Amphenol RF 50 Ohm Connectors
- Indoor/Outdoor Rated
- Designed for Point-to-point and point-to-multipoint wireless communication systems
Specifications:
Belden 9258- RG Type: 8
- Conductor AWG: 16
- Conductor Stranding: 19x29
- Conductor Nom Diameter: 0.057"
- Conductor Material: BC - Bare Copper
- Insulation Material: PE - Polyethylene (Foam)
- Insulation Nom Diameter: 0.155"
- Outer Shield Type: Braid
- Outer Shield Material/Coverage: BC - Bare Copper/95%
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom Diameter: 0.242"
- Overall Cable Diameter: 0.242"
- Nom Conductor DCR: 4.1Ω/1000ft
- Nom Outer Shield DCR: 3.1Ω/1000ft (10Ω/km)
- Nom Capacitance Cond-to-Shield: 25.3pF/ft (83.0pF/m)
- Nom Characteristic Impedance: 50Ω
- Nom Velocity of Prop: 82%
- UL Voltage Rating: 300V (CM)
- Bend Radius: 2.4" (61mm)
- Max Pull Tension: 61lbs (28kg)
Amphenol RF 112533 Connector - Frequency (Max GHz): 4
- Impedance (Ohms): 50Ω
- Body Finish: Nickel
- Body Material: Brass
- Contact Finish: Gold
- Contact Material: Brass
- Coupling Mechanism: Bayonet
