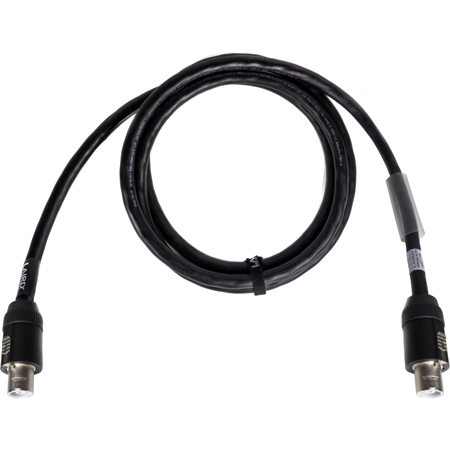

The Laird PWRCN30-HC series delivers a professional power cable designed to meet the rigorous demands of high-current video production and stage lighting applications. These cables are the ideal solution for powering advanced lighting equipment such as the Arri SkyPanel S360 and other pro-grade fixtures that require reliable, high-amperage power delivery.
Built with premium 10/3 SJOOW (Service Junior Hard Service Oil resistant thermoset insulation Oil resistant thermoset jacket Weather resistant) power cable, the PWRCN30-HC series delivers exceptional durability and performance in challenging environments. This heavy-duty construction ensures reliable operation in both indoor studio settings and demanding outdoor locations where weather resistance and mechanical durability are vital.
At the heart of these cables lies the industry-standard Neutrik 32A powerCON connector system, engineered for professional power distribution applications. This 3-pole connection system features a secure locking mechanism to prevent accidental disconnections during critical operations. It's also IP 20 rated when mated with a capacity up to 250V.
This combination of broadcast quality components makes the PWRCN30-HC series the trusted choice for professionals who demand reliability in mission-critical applications. These cables provide the confidence that power will be delivered safely and consistently, whether in a controlled studio environment or an unpredictable on-location production.
Features:
- High-Quality Neutrik NAC3FC-HC 32-Amp powerCON Connectors
- Resistant to Oil, Solvents, Ozone, Weather, Sunlight, and Water
- High 32-Amp Current Capacity
- Premating Contact for Protective Earth (ground)
- Rugged and Flexible 10/3 SJOOW power cable
Specifications:
10/3 Power Cable- Cable Type: SJOOW
- Conductor: Stranded Bare Copper
- Number of Conductors: 3
- Conductor Stranding: 103/30
- AWG: 10
- Insulation Material: EPR
- Nom. Insulation Thickness: 0.045" (1.14mm)
- Separator: Talc
- Outer Jacket Material: CPE
- Nom. Jacket Thickness: 0.060" (1.52mm)
- Nom. Overall Diameter: 0.58" (14.6mm)
- Voltage Rating: 300
- Weight: 0.225/ft
- Temperature: -40°F - 194°F (-40°C - 90°C)
Neutrik NAC3FC-HC powerCON Connector - Contact Resistance: ≤ 3mΩ
- Dielectric Strength: 4kVdc/2.8kVac
- Insulation Resistance: > 10GΩ (initial)
- Amperage: 32 Amps
- Voltage Rating: 250V AC
- Locking Device: Quick Lock
- Lifetime: > 1000 mating cycles
