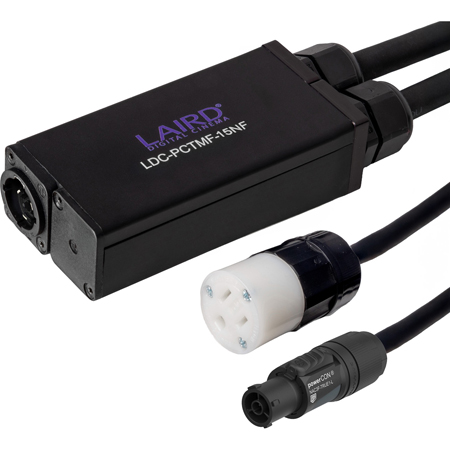

The Laird LDC-PCTMF-15NF is a powerCON TRUE1 power distribution splitter that sends power via a Neutrik powerCON TRUE1 Male connectors to one Neutrik powerCON TRUE1 Female and one NEMA 5-15 Female connector.
powerCON TRUE1
The use of Neutrik powerCON TRUE1 connectors make the LDC-PCTMF-15NF a particularly good choice for harsh and heavy duty productions that would require environmentally sealed connectors, ensuring reliability and peace of mind. This makes the LDC-PCTMF-15NF ideal for professional audio, lighting rigging and live events.
5-15 Edison Connector
Sometimes simplicity is key, so on top of a powerCON TRUE1 connector, the LDC-15NMF-PCTF also features a female edison connector for any gear that may require it.
Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterrupted power for your mission-critical gear.
Features:
- Laird's PWR-12/3-TP Rugged yet flexible power cable
- High-Quality Neutrik powerCON connectors
- Rugged Aluminum Enclosure
- Multiple connector options are available
Specifications:
Box Specifications- Dimensions: 4" x 2.04" x 1.24"
- Input: 1x Neutrik powerCON TRUE1 Male
- Output:
• 1x Neutrik powerCON TRUE1 Female
• 1x Edison Female Receptacle
Laird PWR-12/3-TP - Cable Type: SJOOW
- Number of Conductors: 3x 12 AWG
- Current Carrying Capacity: 25A
- Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
- Outer Jacket: Rubber (CPE) Black
- Cable Insulation: Rubber (EPR)
Neutrik Connectors - Contact Resistance: ≤2mΩ
- Dielectric Strength: 4kVDC/2.8kVAC
- Rated Amperage: 20A
- Rated Voltage: 250VAC
Leviton Connector - Amperage: 15A
- Rated Voltage: 125VAC
- Blades/Contact Material: Solid Brass
