The Laird LDC-PCTM series of heavy-duty power cable assemblies adapts a Neutrik powerCON TRUE1 TOP Male connector to your choice of 15-amp NEMA Female, 20-amp NEMA Female, 20-amp NEMA Twist Lock Female, Bates Stage Pin Female, IEC Female, Neutrik powerCON Type A, and Neutrik powerCON Type B chassis connectors. It features the durable yet flexible Laird PWR-12/3-TP SJOOW power cable, providing a secure AC connection to audio gear, video gear, and power lighting in the studio or harsh environments.

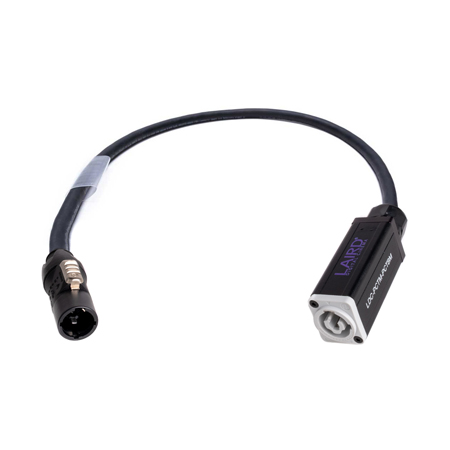

The Laird PCTM-PCTBM combines the Neutrik powerCON TRUE1 TOP Male Connector with the Neutrik powerCON Type B NAC3MPXXB. Great for live touring settings, studios where rugged connections are necessary, or if you're trying to save wear and tear from constantly plugging and unplugging.

powerCON TRUE1 TOP
The Neutrik powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is a heavy duty, sealed power connector for harsh and demanding environments.

Neutrik powerCON Type B NAC3MPXXB
The Neutrik Type B NAC3MPXXB powerCON connector is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. It features a lockable single phase connector, 3 contacts for line, neutral, and premating safety ground, and is extremely robust and reliable for everyday use.

Features:

• Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
• High-quality Neutrik powerCON connectors
• UL-recognized components

Specifications:

Laird PWR-12/3-TP
• Cable Type: SJOOW
• Number of Conductors x AWG: 3x12
• Conductor Insulation: Rubber (EPR)
• Outer Jacket Material: Rubber (CPE)
• Current Carrying Capacity: 25 Amps
• Outer Diameter: 0.425" - 0.476"
• Nom. Voltage: AC U 300V
• Temperature:
  - Flexing: -4°F - 194°F (-20°C - 90°C)
  - Static: -40°F - 194°F (-40°C - 90°C)
• Min Bend Radius:
  - Flexing: 4.76"
  - Static: 2.85"
• Weight: 0.14lbs/ft

  Neutrik powerCON Connectors
• Contact Resistance: ≤ 2mΩ
• Amperage: 20 Amps
• Voltage: 250V AC
• Dielectric Strength:
  - NAC3MPXXB: > 3kVac
  - NAC3MX-W-TOP: 4kVdc/2.8kVac
• Insulation Resistance:
  - NAC3MPXXB: > 10GΩ (initially)
  - NAC3MX-W-TOP: >0.1GΩ
• Lifetime: 5,000 mating cycles
