The Laird PTCAM is a series of powerCON adapters that enable conversions from Neutrik's powerCON to various connectors, such as Neutrik powerCON TRUE1 connectors, Edison plugs, and IEC plugs. This series allows for `plug-and-play' interconnection between Neutrik powerCON and more common IEC and NEMA 5-15 connectors, offering additional adaptability and flexibility with the ability to power your lighting, audio, and video gear in a new or existing system.

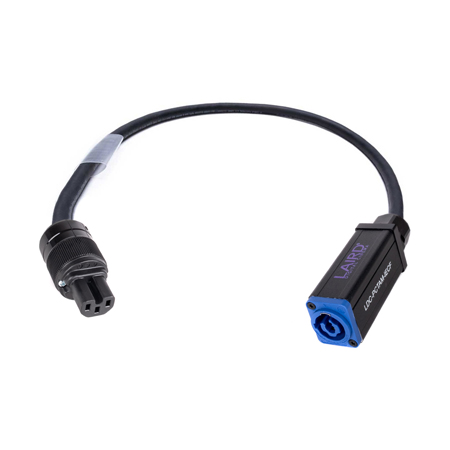

The Laird PCTAM-IECF combines the Neutrik powerCON connector with a 15 Amp Female IEC Connector. Great for live touring settings, studios where rugged connections are necessary, or if you're trying to save wear and tear from constantly plugging and unplugging.
Neutrik powerCON Type A NAC3MPXXA
The Neutrik Type A NAC3MPXXA powerCON connector is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. It features a lockable single phase connector, 3 contacts for line, neutral, and premating safety ground, and is extremely robust and reliable for everyday use.
15A IEC Female Connector
The 15 Amp IEC Connector is a reliable, heavy duty vinyl body, and features Perma-Lock terminals that reliably lock up screw threads, enabling the screws to hold strong during times of heat and vibration.
Features:
- Laird's flexible SJOOW PWR-12/3-TP Cable
- Rugged Neutrik connectors and industry-standard IEC Plug, NEMA 5-15 rated Plug
- Various connector types are available to suit most applications
- UL-recognized components
Specifications:
Laird PWR-12/3-TP Cable- Conductor Material: Bare Copper Wire
- Number of Conductors x AWG: 3x12
- Outer Jacket Material: Rubber (CPE)
- Outer Diameter: 0.425" - 0.476"
- Bend Radius:
- Flexing: 4.76"
- Static: 2.85"
Neutrik powerCON Chassis Connector - Contact Resistance: ≤ 2mΩ
- Dielectric Strength: 4kV DC/2.8kV AC
- Insulation Resistance: > 1GΩ
- Lifetime: > 5000 mating cycles
- Protection Class: IP 20
IEC Connector - Amps: 15
- Volts: 250
Warranty:
