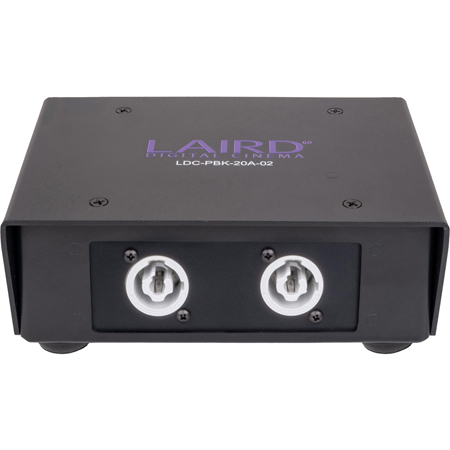

The Laird LDC-PBK-20A-02 is a 20 Amp power distribution splitter box that provide power to your Neutrik powerCON TRUE1 TOP connectors. Feed-thru connectors allow for daisy-chaining of multiple boxes, ensuring uninterrupted power delivery across various setups. Encased in a rugged aluminum enclosure, this series features an M10 threaded insert that enables versatile and easy integration with other equipment or truss systems. The LDC-PBK-20A is ideal for professional audio and lighting rigging and live events.
The LDC-PBK-20A-02 is perfect for whenever you need power, but space is limited. With a small form factor, it's able to fit into many tight fighting, awkward spaces that other boxes may not be able to. Combine that with the quality of NEUTRIK PowerCON connectors and you'll be bringing this to every venue.
NEUTRIK PowerCON TRUE1 TOP Connectors
The LDC-PBK-20A-02 features the NAC3FPX-WOT-TOP and NAC3MPX-WOT-TOP inlet connectors with 1/4 inch flat tab terminals. They are a locking 16A true mains connector for outdoor applications, and replaces appliance couples wherever a rugged solution is needed. They feature high impact UV-resistant materials, an easy and reliable twist lock system, and are extremely robust.
NEUTRIK PowerCON XX Receptacles
The LDC-PBK-20A-02 features 2x NAC3MPXXB locking mains connectors with 3/16 inch flat tab terminals. They are a lockable single phase connector with fast and easy twist lock latching system. The PowerCON XX Series connectors are perfect for rugged solutions, and even allows for hot plugging for all your quick change needs.
Features:
- Features
- High-Quality Neutrik powerCON connectors
- Rugged Aluminum Enclosure
- Multiple connector options available
- M10 Truss mounting insert that enables easy mounting
Specifications:
Box Specifications - Dimensions: 6.5" x 4.875" x 2.625"
- Rated Amperage: 20 Amps
- Input:
x1 powerCON TRUE1 - Output:
x1 powerCON TRUE1
x4 powerCON Type B
Neutrik powerCON Connectors - Contact Resistance: = 2 mΩ
- Dielectric Resistance: 4 kVdc / 2.8 kVac
- Insulation Resistance: > 1 GΩ
- Rated Amps: 20 Amps
- Rated Voltage: 250 V AC
