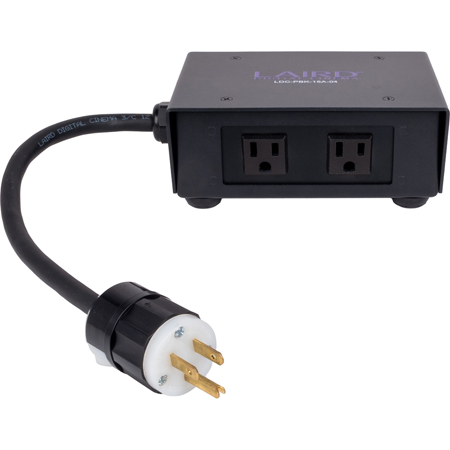

The Laird LDC-PBK-15A-04 is a 15 Amp power distribution splitter box that provide power to your NEMA 5-15 connectors. Feed-thru connectors allow for daisy-chaining of multiple boxes, ensuring uninterrupted power delivery across various setups. Encased in a rugged aluminum enclosure, it also features an M10 threaded insert that enables versatile and easy integration with other equipment or truss systems. The LDC-PBK-15A is ideal for professional audio and lighting rigging and live events.
Leviton Edison Plug
The LDC-PBK-15A-04 features a Leviton Edison 15A NEMA 5-15P three prong plug. It features a rugged nylon construction that is resistant against sunlight, chemicals and rough use. Coupled with the heavy duty Laird PWR-12/3-TP power cable, this plug is tough even against heavy wear and tear.
Features:
- Laird's PWR-12/3-TP Rugged yet flexible power cable
- Rugged Aluminum Enclosure
- Multiple connector options are available
- M10 Truss mounting insert that enables easy mounting
Specifications:
Box Specifitaions:- Dimensions: 6.5" x 4.875" x 2.625"
- Rated Amperage: 15 Amps
- Input:
• x1 Leviton NEMA 5-15 Edison Plug - Output:
• x5 NEMA 5-15 Edison Receptacles
Laird PWR-12/3-TP: - Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Current Carrying Capacity: 25 Amps
- Nom Outer Diameter: .42in (10.8mm) - .47in (12.1mm)
- Outer Jacket: Rubber (CPE) Black
- Cable Insulation: Rubber (EPR)
Leviton Plug: - Voltage: 125 V AC
- Dielectric Voltage: Withstands 2000V per UL498
- Blade Material: Solid Brass
- Body Material: Impact Modified Nylon
- NEMA Rating: 5-15P
Edison Receptacles: - Voltage Rating: 125 V AC
- NEMA Rating: 5-15
