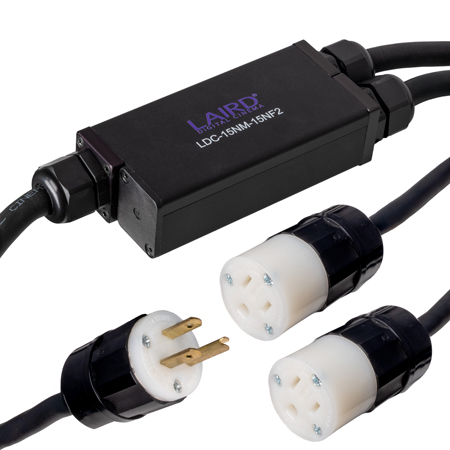

The Laird LDC-15NM-15NF2 Edison power distribution splitter sends power via one 5-15 Edison Male plug to two NEMA 5-15 Female connectors.
Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterupted power for your mission-critical gear. This makes the LDC-15NM-15NF2 ideal for professional audio, lighting rigging and live events.
Features:
- Laird's PWR-12/3-TP Rugged yet flexible power cable
- High-Quality Leviton Edison connectors
- Rugged Aluminum Enclosure
- Multiple connector options are available
Specifications:
Box Specifications- Dimensions: 4" x 2.04" x 1.24"
- Input: 1x Edison Male Plug
- Output: 2x Edison Female Receptacle
Laird PWR-12/3-TP - Cable Type: SJOOW
- Number of Conductors: 3x 12 AWG
- Current Carrying Capacity: 25A
- Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
- Outer Jacket: Rubber (CPE) Black
- Cable Insulation: Rubber (EPR)
Neutrik Connectors - Contact Resistance: ≤2mΩ
- Dielectric Strength: 4kVDC/2.8kVAC
- Rated Amperage: 20A
- Rated Voltage: 250VAC
Leviton Connector - Amperage: 15A
- Rated Voltage: 125VAC
- Blades/Contact Material: Solid Brass
