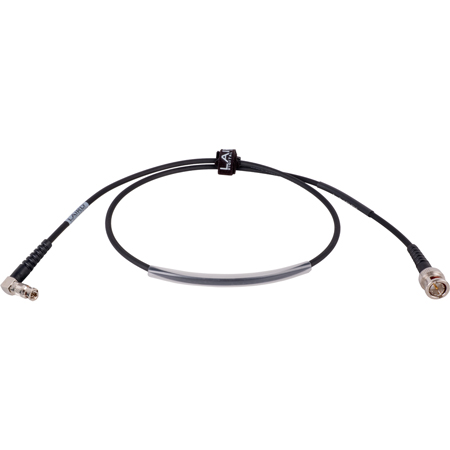

The Laird HDBRA12G59 Tactical Series delivers rugged, reliable, field-ready 12G performance for broadcast and mobile production. These tactical assemblies are built using flexible Mini RG-59 12G-SDI cable, featuring a double-shielded foil and braid combination and a flexible TPE jacket, to ensure reliable signal strength and superior protection from interference in harsh environments. Available in multiple HD-BNC Right Angle configurations and standard lengths for reliable deployment in field and broadcast applications.
** Laird Certifies this cable to work at a Max Transmission Distance of 115 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance. **
Features:
- Flexible 12G-SDI 4K UHD cable for mobile and deployable applications
- Excellent protection from signal interference
- Supports 12Gbps transmission of uncompressed 4K UHD
- High-quality BNC connectors and HD-BNC connectors
Specifications:
Laird Mini RG-59- RG Type: Mini RG-59
- Inner Conductor O.D.: 0.02" (0.584mm)
- Inner Material: Silver Plated Copper
- Dielectric O.D.: 0.10" (2.59mm)
- Dielectric Material: Foam HDPE
- First Shield Thickness: 0.10" (2.70mm)
- First Shield Material: Bonded Aluminum Foil
- Second Shield Thickness: 0.12" (3.15mm)
- Second Shield Material: Tinned Copper Braid
- Jacket O.D.: 0.15" (4.05mm)
- Jacket Material: TPE
- Impedance: 75 Ohms
- Max. Frequency: DC to 12 GHz
- Capacitance: 53 pF/m
- Attenuation (per 100m):
- 270.000 MHz/17.84 dB
- 1000.000 MHz/35.40 dB
- 12000.000 MHz/135.00 dB - Velocity of Propagation: 83%
- Bending Radius:
- Static: 0.55" (14mm)
- Flexing: 0.55" (14mm) - Temperature: -4°F - 167°F (-20°C - 75°C)
BNC Connectors - Dielectric Withstanding: 1500 Volts RMS Maximum
- Impedance: 75 Ohms
- Interface Frequency: 12 GHz
- Lifetime: 500 Mating Cycles
HD-BNC Connectors - Dielectric Withstanding: 500 Volts RMS Maximum
- Impedance: 75 Ohms
- Interface Frequency: 12 GHz
- Lifetime: 500 Mating Cycles
