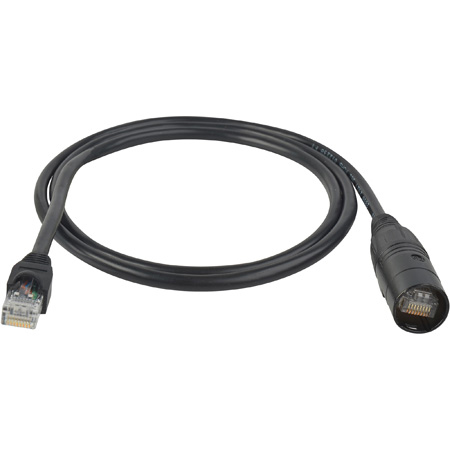

The Laird EC8-RJ45 CAT5e Tactical Ethernet Cable was developed for any application requiring heavy-duty CAT5e Ethernet cable deployment! It features Belden 7923a CAT5e DataTuff Twisted pair cable with a standard RJ45 connector at one end and a professional Neutrik EtherCON RJ45 connector on the other. The standard RJ45 connector end features a snagless round boot to protect the RJ45 locking tab.
EC8-RJ45 series Ethernet cables are Ideal for use with video and audio CAT5e extenders on set, in the field or anywhere a heavy-duty CAT5e to Neutrik EtherCON cable is needed. It's also a great Vox VC-12 Pedalboard replacement cable for connection to Valvetronix "Blue" Series amps. Because it's a tactical grade cable, it's a rugged option for stage and touring use.
Prevalent use of RJ45 connectors in the stage world has created the need for a road-worthy Ethernet cable. Neutrik's EtherCON has a rugged diecast shell and unique chuck type strain relief which protects Ethernet connections in a variety of broadcast & commercial applications, and is designed to prevent breakage of the fragile components of standard RJ45 connectors.
Features:
- Vox VC-12 Pedalboard replacement cable
- Manufactured with premium components
- Connector withstands repeated connections and maintains mechanical and electrical integrity
- Ideal for use with video and audio CAT5e extenders
Specifications:
- Belden 7923a
- Conductor AWG: 24
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Conductor Number of Pairs: 4
- Insulation Material: PO - Polyolefin
- Bonded-Pair: Yes
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.230" (5.84mm)
- Outer Jacket Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.230" (5.84mm)
- Max. Conductor DCR: 9Ω/1000ft
- Max. DCR Unbalance: 3.0%
- Max. Capacitance Unbalance: 66pF/ft
- Nom. Mutual Capacitance: 15pF/ft
- Max. Delay Max.: 510ns/100m
- Delay Skew: 25ns/100m
- UL Voltage Rating: 300V (CMR), 300V (CMX-Outdoor)
- UL Rating Temp: 167°F (75°C)
- Operating Temp: -40°F - 167°F (-40°C - 75°C)
- Installation Temp: -13°F - 167°F (-25°C - 75°C)
- Storage Temp: -13°F - 167°F (-25°C - 75°C)
- Max. Pull Tension: 40lbs
- Bulk Cable Weight: 27lbs/1000ft
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
- NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
- CEC / C(UL) Compliance: CMX-Outdoor;CMG
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
- CPR Euroclass: Eca
Neutrik NE8MX - Cable O.D.: Max. 8mm 0.315'
- Insertion Force: =20 N
- Withdrawal Force: =20 N
- Lifetime: > 1000 mating cycles
- Boot: Polyamide (PA 6)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Strain Relief: Polyacetal (POM)
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
