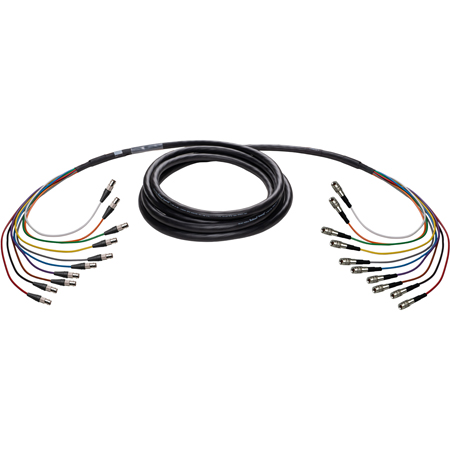

Laird 10-Channel 4855R 12G-SDI/4K UHD DIN snake cables are the next-gen Mini-RG59 DIN cable designed to handle 12GHz 4K UHD signals with a clean signal delivery up to 117 feet (3G-SDI up to 300 feet). These DIN 1.0/2.3 Male to BNC Female cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition coaxial cable for 12G-SDI, these cables are the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's DIN cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855R Series is the 12G-SDI equivalent of Belden's famous 1855A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
Features:
- Belden Riser Rated 4855R and High-Quality DIN 1.0/2.3 and Amphenol RF Connectors
- Space-Saving 10-Channel Snake
- Easy Handling & Portability
- Each Channel is Rated for 12G-SDI
- Flexible Cable Suitable for Studio or Field Applications
Specifications:
Belden 4855R:- RG Type: Mini RG-59
- Conductor AWG: 23
- Conductor Stranding: Solid
- Conductor Nom. Diameter: 0.023in
- Conductor Material: Silvered Copper
- Insulation Nom. Diameter: 0.102in
- Insulation Material: Polyethylene Foam
- Inner Shield Type:
• Layer 1: Tape
• Layer 2: Braid - Inner Shield Material/Coverage:
• Layer1: Tri-Laminate (Alum+Poly+Alum)/100%
• Layer 2: Tinned Copper/95% - Inner Jacket Nom. Diameter: 0.159in
- Inner Jacket Material: Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.786in
- Outer Jacket Material: Polyvinyl Chloride
- Return Loss:
• 5 - 1600 MHz 23 dB
• 1600 - 4500 MHz 21 dB
• 4500 - 12000 MHz 15 dB - Nom. Conductor DCR: 19.7 Ohm/1000ft (64.6 Ohm/km)
- Nom. Inner Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
- Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m)
- Nom. Characteristic Impedance: 75Ω
- Nom. Velocity of Prop.: 82%
- UL Voltage Rating: 300 V RMS (CMR)
- Operating Temperature: -22�F to 167�F (-30�C to +75�C)
- Min. Bend Radius: 7.9 in
- Max. Pull Tension 330lbs
Amphenol RF connectors: - Frequency (Max GHz): 12
- Impedance (Ohms): 75Ω
- Body Finish: Nickel
- Body Material: Brass
- Contact Finish: Gold
- Insulator Material: PTFE
DIN Connectors: - Nom. Impedance: 75Ω
- Frequency Range: 0~12GHz
- Insulator Resistance: 1000MΩ
