Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot

Get larger image of Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot


Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 433 feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4505R 4K Ultra-High-Definition RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4505 Series is the 12G-SDI equivalent of Belden's famous 1505 cable. It features a silver plated copper center conductor and a cable diameter of less than 1/4" making it the ideal choice for low profile cable runs. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 150 Feet for 12G-SDI even though Belden may show this distance as 208 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link BNC Simplifies Installations
  • Optimized Transmission Distance for UHDTV
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
  • Sweep tested 5 MHz to 12 GHz

Specifications:

  • Belden 20 AWG 12G SDI Coax Cable with PVC Jacket
  • Belden Certified Max Transmission Distance: 12G Signals up to 208 feet, 6G up to 302 feet, and 3G up to 433 feet
  • Laird Certified Max Transmission Distance: 150 Feet for 12G/4K
  • 12G-Optimized Belden BNC Connectors Compatible with 12GSDI Single Link Format Devices
  • Transmission Distance: 12G Signals up to 208 feet, 6G up to 302 feet, and 3G up to 433 feet
  • Number of Coax: 1
  • Stranding: Solid Conductor Material SPC - Silver Plated Copper Diameter: 0.813mm
  • Outer Jacket Material: PVC - Polyvinyl Chloride Overall
  • Nominal Diameter: 5.918 mm
  • Operating Temperature Range: -30°C To +75°C
  • Bulk Cable Weight: 46.134 Kg/Km
  • Max. Recommended Pulling Tension: 231.306 N Min. Bend Radius/Minor Axis: 63.500 mm Nom.
  • Characteristic Impedance: Impedance (Ohm) 75 Nom.
  • Inductance: Inductance (�H/m) 0.351067
  • Nom. Capacitance Conductor to Shield: Capacitance (pF/m) 52.824
  • Nominal Velocity of Propagation: VP (%) 83.000
  • Nominal Delay: Delay (ns/m) 4.003
  • Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/km): 33.466
  • Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/km): 11.155
  • Max. Operating Voltage - UL: Voltage 300 V RMS Other Electrical Characteristic 2
  • Return Loss: Fixed bridge and termination
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • Limited Lifetime
Download the 4505R-B-B Series Datasheet
Laird 12G-SDI Max Distance Chart

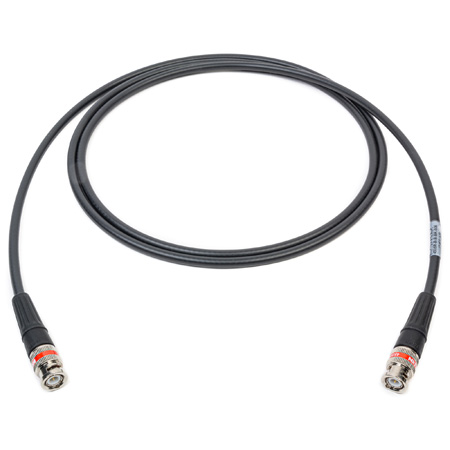

  4505R-B-B-BK-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot
Select Colors:
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-BK-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot
Select Colors:
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-BK-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot
Select Colors:
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-BK-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot
Select Colors:
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-BK-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot
Select Colors:
Weight: 0.8624 lbs. 		Price:
$64.95
  4505R-B-B-BK-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot
Select Colors:
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-BK-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot
Select Colors:
Weight: 1.6624 lbs. 		Price:
$105.49
  4505R-B-B-BK-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot
Select Colors:
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-BK-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot
Select Colors:
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-BK-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot
Select Colors:
Weight: 4.0624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$228.49
  4505R-B-B-BK-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot
Select Colors:
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$269.49
  4505R-B-B-BK-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot
Select Colors:
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$310.49
  4505R-B-B-BK-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot
Select Colors:
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$351.49
  4505R-B-B-LB-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot Light Blue
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-LB-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot Light Blue
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-LB-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot Light Blue
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-LB-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot Light Blue
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-LB-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot Light Blue
Weight: 0.8624 lbs. 		Price:
$64.49
  4505R-B-B-LB-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot Light Blue
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-LB-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot Light Blue
Weight: 1.6624 lbs. 		Price:
$105.49
  4505R-B-B-LB-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot Light Blue
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-LB-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot Light Blue
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-LB-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot Light Blue
Weight: 4.0624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$228.49
  4505R-B-B-LB-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot Light Blue
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$268.95
  4505R-B-B-LB-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot Light Blue
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$309.95
  4505R-B-B-LB-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot Light Blue
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$350.95
  4505R-B-B-MG-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot Military Green
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-MG-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot Military Green
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-MG-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot Military Green
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-MG-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot Military Green
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-MG-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot Military Green
Weight: 0.8624 lbs. 		Price:
$64.95
  4505R-B-B-MG-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot Military Green
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-MG-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot Military Green
Weight: 1.6624 lbs. 		Price:
$105.49
  4505R-B-B-MG-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot Military Green
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-MG-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot Military Green
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-MG-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot Military Green
Weight: 4.0624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$228.49
  4505R-B-B-MG-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot Military Green
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$269.49
  4505R-B-B-MG-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot Military Green
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$310.49
  4505R-B-B-MG-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot Military Green
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$351.49
  4505R-B-B-OE-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot Orange
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-OE-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot Orange
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-OE-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot Orange
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-OE-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot Orange
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-OE-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot Orange
Weight: 0.8624 lbs. 		Price:
$65.49
  4505R-B-B-OE-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot Orange
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-OE-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot Orange
Weight: 1.6624 lbs. 		Price:
$105.49
  4505R-B-B-OE-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot Orange
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-OE-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot Orange
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-OE-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot Orange
Weight: 4.0624 lbs. 		Price:
$228.49
  4505R-B-B-OE-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot Orange
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$269.49
  4505R-B-B-OE-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot Orange
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$310.49
  4505R-B-B-OE-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot Orange
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$351.49
  4505R-B-B-RD-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot Red
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-RD-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot Red
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-RD-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot Red
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-RD-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot Red
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-RD-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot Red
Weight: 0.8624 lbs. 		Price:
$64.95
  4505R-B-B-RD-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot Red
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-RD-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot Red
Weight: 1.6624 lbs. 		Price:
$105.49
  4505R-B-B-RD-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot Red
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-RD-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot Red
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-RD-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot Red
Weight: 4.0624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$228.49
  4505R-B-B-RD-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot Red
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$269.49
  4505R-B-B-RD-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot Red
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$310.49
  4505R-B-B-RD-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot Red
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$351.49
  4505R-B-B-VT-003
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 3 Foot Violet
Weight: 0.1584 lbs. 		Price:
$28.49
  4505R-B-B-VT-006
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 6 Foot Violet
Weight: 0.2544 lbs. 		Price:
$33.49
  4505R-B-B-VT-010
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 10 Foot Violet
Weight: 0.3824 lbs. 		Price:
$39.95
  4505R-B-B-VT-015
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 15 Foot Violet
Weight: 0.5424 lbs. 		Price:
$48.49
  4505R-B-B-VT-025
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 25 Foot Violet
Weight: 0.8624 lbs. 		Price:
$64.95
  4505R-B-B-VT-035
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 35 Foot Violet
Weight: 1.1824 lbs. 		Price:
$80.95
  4505R-B-B-VT-050
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 50 Foot Violet
Weight: 1.6624 lbs. 		Price:
$105.95
  4505R-B-B-VT-075
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 75 Foot Violet
Weight: 2.4624 lbs. 		Price:
$146.49
  4505R-B-B-VT-100
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 100 Foot Violet
Weight: 3.2624 lbs. 		Price:
$187.49
  4505R-B-B-VT-125
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 125 Foot Violet
Weight: 4.0624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$228.49
  4505R-B-B-VT-150
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 150 Foot Violet
Weight: 4.8624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$269.49
  4505R-B-B-VT-175
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 175 Foot Violet
Weight: 5.6624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$310.49
  4505R-B-B-VT-200
Laird 4505R-B-B 12G-SDI/4K UHD Single Link BNC Belden RG-59 4505R Broadcast Coax Cable - 200 Foot Violet
Weight: 6.4624 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$351.49



Related Products: Cables
Catalog Awards Press Privacy

© 2026 Laird Digital Cinema, Division of Tower Products Incorporated • Legal Notice & Code of Ethics
Submit Comments Regarding This Website To Webmaster. All Trademarks are Registered Trademarks or Trademarks of their respective companies. Laird Digital Cinema is not affiliated, associated, endorsed or sponsored by Red.com, Inc. Red, Red One, Mysterium, Epic & Scarlet are registered trademarks of RED.com, Inc.
