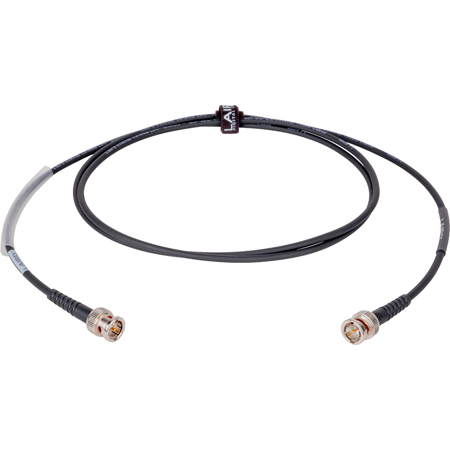

The Laird 12G-M59-BB Tactical Series cables deliver rugged, reliable, field-ready 12G performance for broadcast and mobile productions. They are perfect for any productions that require on the fly set up and take down, and are durable enough where you never have to worry about them. They feature a double-shielded foil and braid combination and are built using flexible Mini RG-59 12G-SDI cable. Add in a flexible TPE jacket and you get reliable signal strength and superior protection from interference in any and all environments.
GSB-M59-0 Strain Relief Boot
The Laird 12G-M59 Series features the GSB-M59-0 Strain Relief Boot from Gigatronix. It is a black, thermoplastic rubber boot with a 4.52mm Hex.
BN15-4855-C06D-Z Straight Plug
The 12G-M59 Series also features the BN15-4855-C06D-Z BNC 12G SDI Straight Plug from Gigatronix. It is a precision 75 ohm BNC Crimp Plug that is designed to carry 12G-SDI 4K signals on a single channel. It is ROHS Compliant and has a durability fit for 500 mating cycles.
** Laird Certifies this cable to work at a Max Transmission Distance of 115 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance. **
Features:
- Flexible 12G-SDI 4K UHD cable for mobile and deployable applications
- Excellent protection from signal interference
- Supports 12Gbps transmission of uncompressed 4K UHD
- High-quality BNC connectors
Specifications:
Laird Mini RG-59- RG Type: Mini RG-59
- Inner Conductor O.D.: 0.02" (0.584mm)
- Inner Material: Silver Plated Copper
- Dielectric O.D.: 0.10" (2.59mm)
- Dielectric Material: Foam HDPE
- First Shield Thickness: 0.10" (2.70mm)
- First Shield Material: Bonded Aluminum Foil
- Second Shield Thickness: 0.12" (3.15mm)
- Second Shield Material: Tinned Copper Braid
- Jacket O.D.: 0.15" (4.05mm)
- Jacket Material: TPE
- Impedance: 75 Ohms
- Max. Frequency: DC to 12 GHz
- Capacitance: 53 pF/m
- Attenuation (per 100m):
- 270.000 MHz/17.84 dB
- 1000.000 MHz/35.40 dB
- 12000.000 MHz/135.00 dB - Velocity of Propagation: 83%
- Bending Radius:
- Static: 0.55" (14mm)
- Flexing: 0.55" (14mm) - Temperature: -4°F - 167°F (-20°C - 75°C)
BNC Connectors - Dielectric Withstanding: 1500 Volts RMS Maximum
- Impedance: 75 Ohms
- Interface Frequency: 12 GHz
- Lifetime: 500 Mating Cycles
